Description

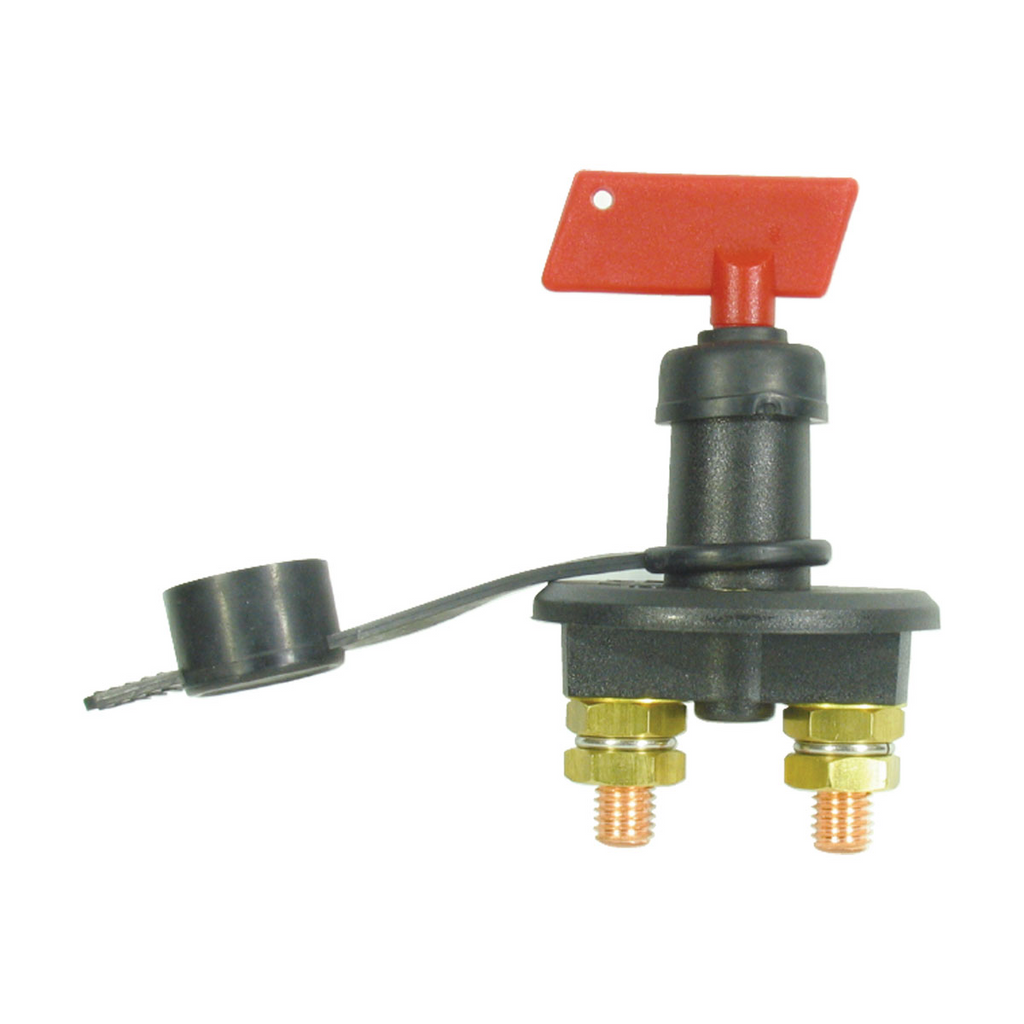

Key type, on/off switch with removable plastic key for security. Key and switch are both fitted with weatherproof boots. All brass electrical contacts. Engines must be shut down before turning to 'off' position. Suitable for 12 or 24 volt. Rated maximum load, 500 amps for ten seconds. Overall length includes key.
BLA Code114314
Base Dia. 65mm
Overall Length102mm
Stem Length 33mm
Stem Dia. 23mm
Mount Screws 6mm
Terminal Stud 10mm
Accessories
114309 Spare key only (without boot)
