Description

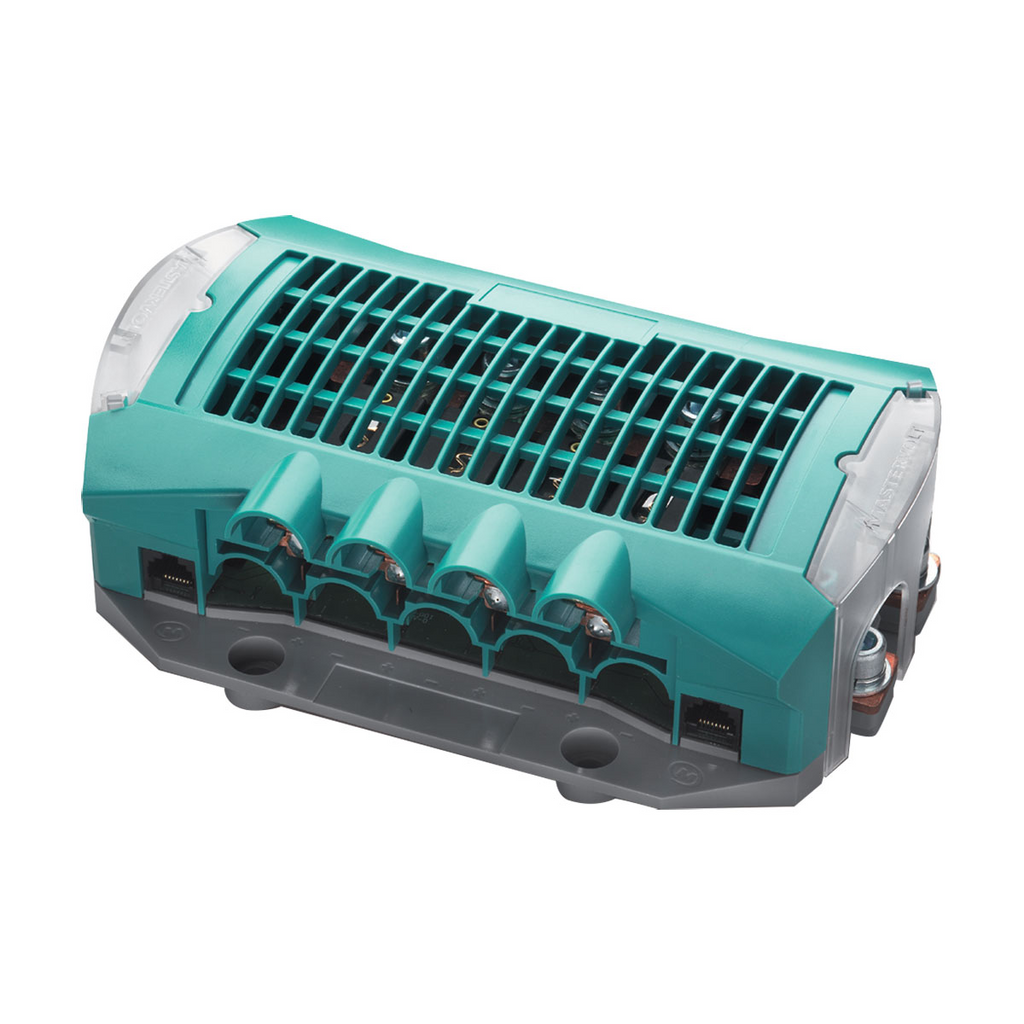

The DC Distribution 500 is the smallest distribution model available. It connects up to four DC devices to the DC groups, such as a battery charger, inverter, alternators and solar panels. With the included plug and play cable it can be easily connected to the MasterBus network. The MasterView panel gives all fuses logical names, for instance, referring to the connected equipment, to ensure you receive understandable error notifications (for example battery charger fuse defect).
BLA Code110554
BLA Code
110554
Battery voltage12, 24 or 48V DC
Current300A continuous / 500A for 5 minutes
MasterBus poweringNo
Standard fuses80, 80, 125, 160A - ANL type (deviating values can be ordered separately)
Spare fuse125A ANL type
Alarmfuse monitoring
Dimensions, H x W x D mm150 x 216 x 65
Weight kg1.2
Protection degreeIP21
Delivered with5 fuses, hex tool, MasterBus Terminator, MasterBus cable, cable protections for DC connections
