Description

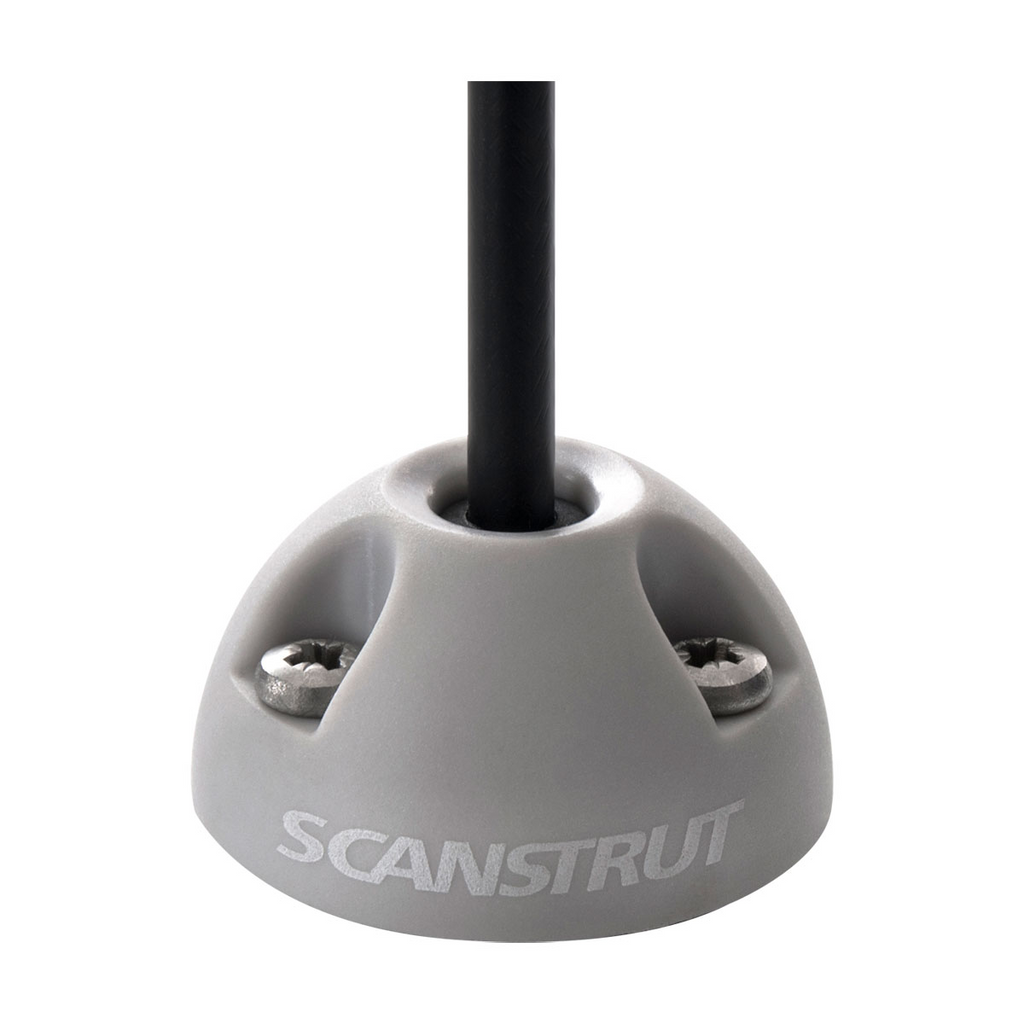

The only guaranteed and proven watertight installation for your antenna and navlight cables. Pass cables into the boat, anywhere on deck. No need to remove cable plug.
Features
Low profile shape for a stronger, impact resistant seal. No sharp edges to hit your foot on

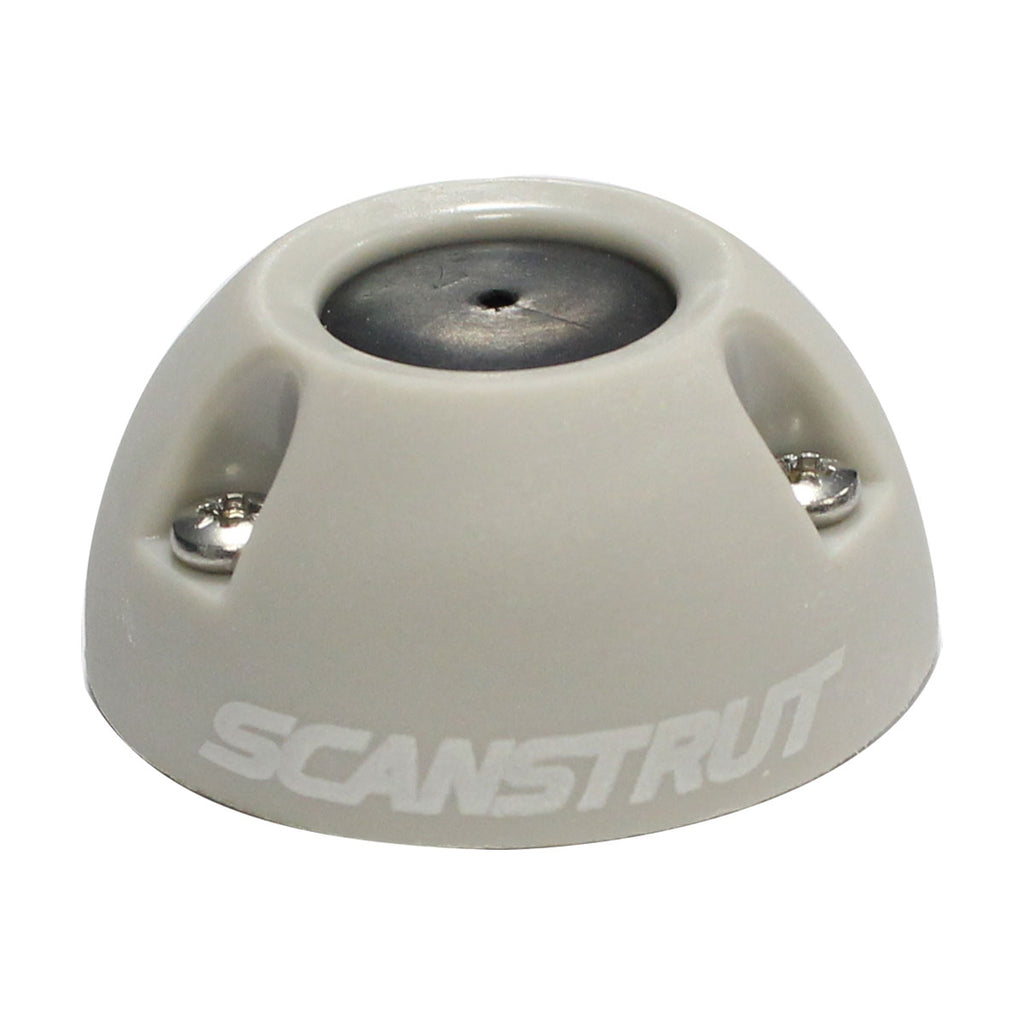

Supplied with blank and pre-drilled inner seals
Split seal eliminates need to remove cable connectors during install
Captive nuts in base provide easy assembly and allow reliable repeat installations

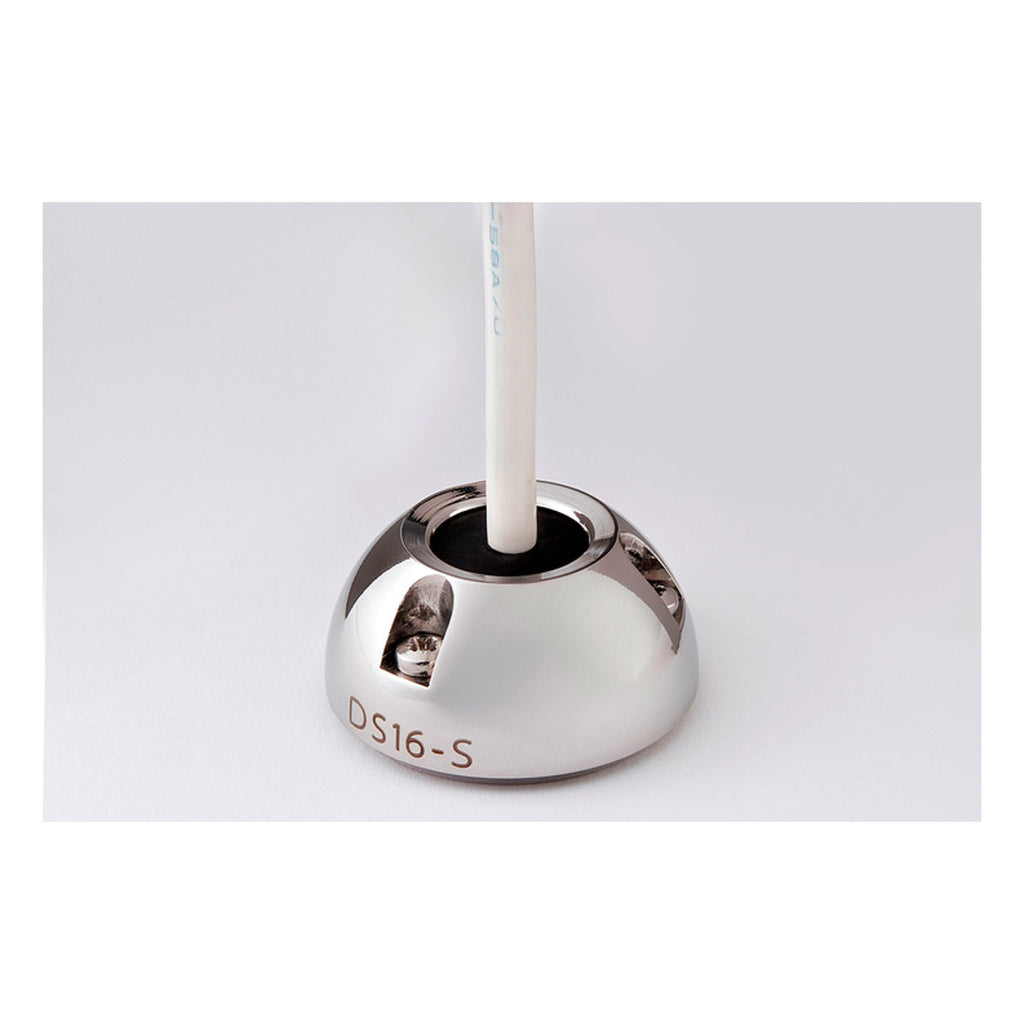

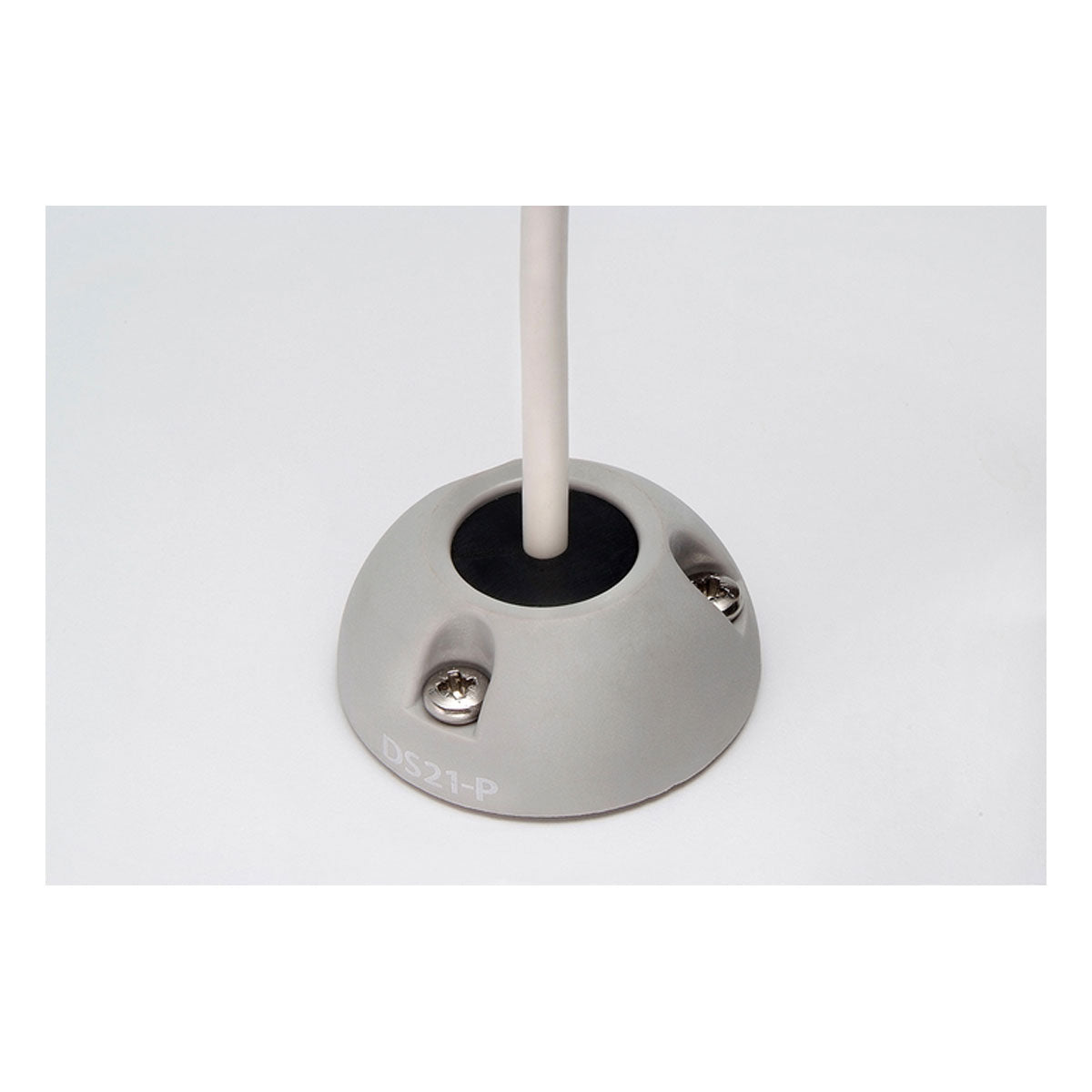

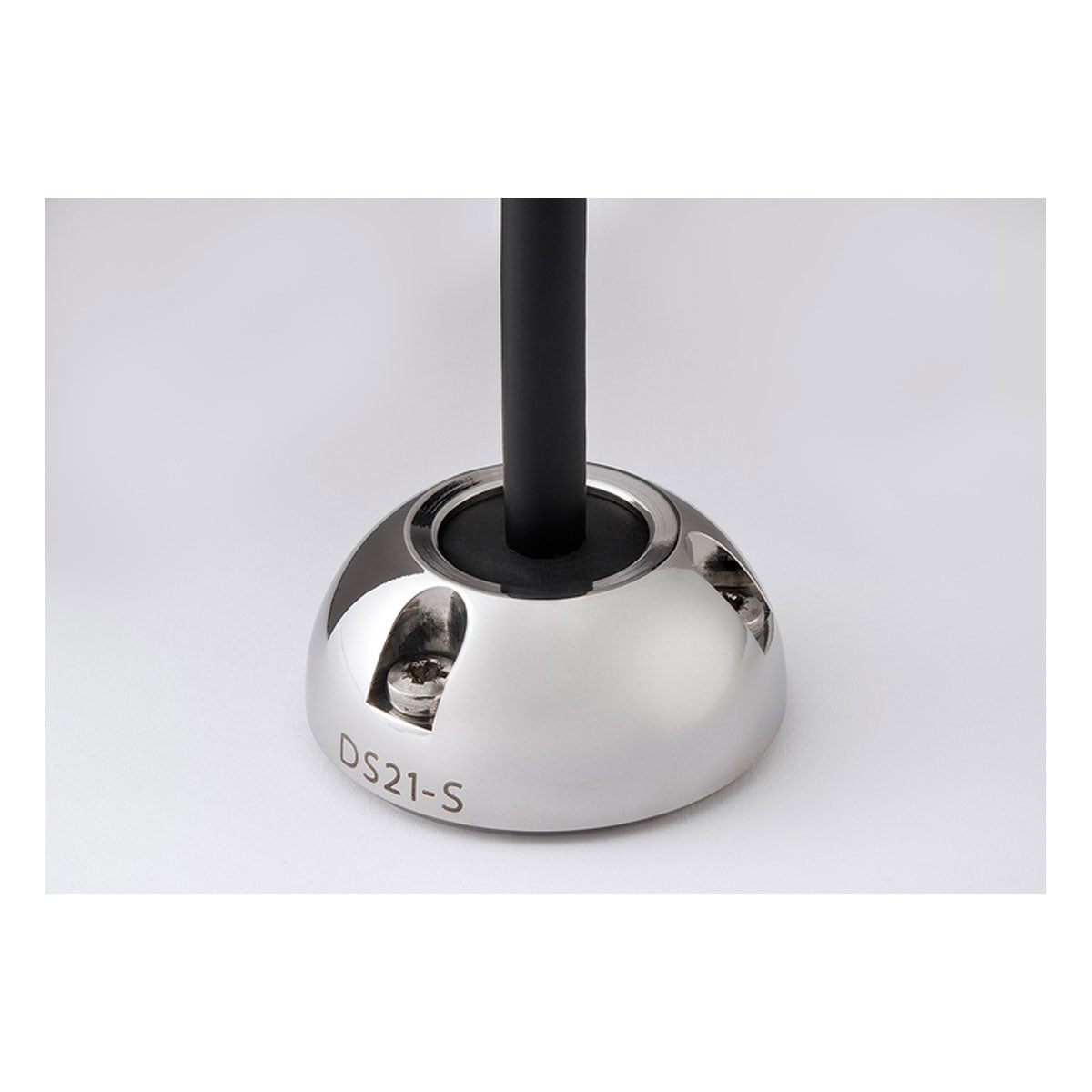

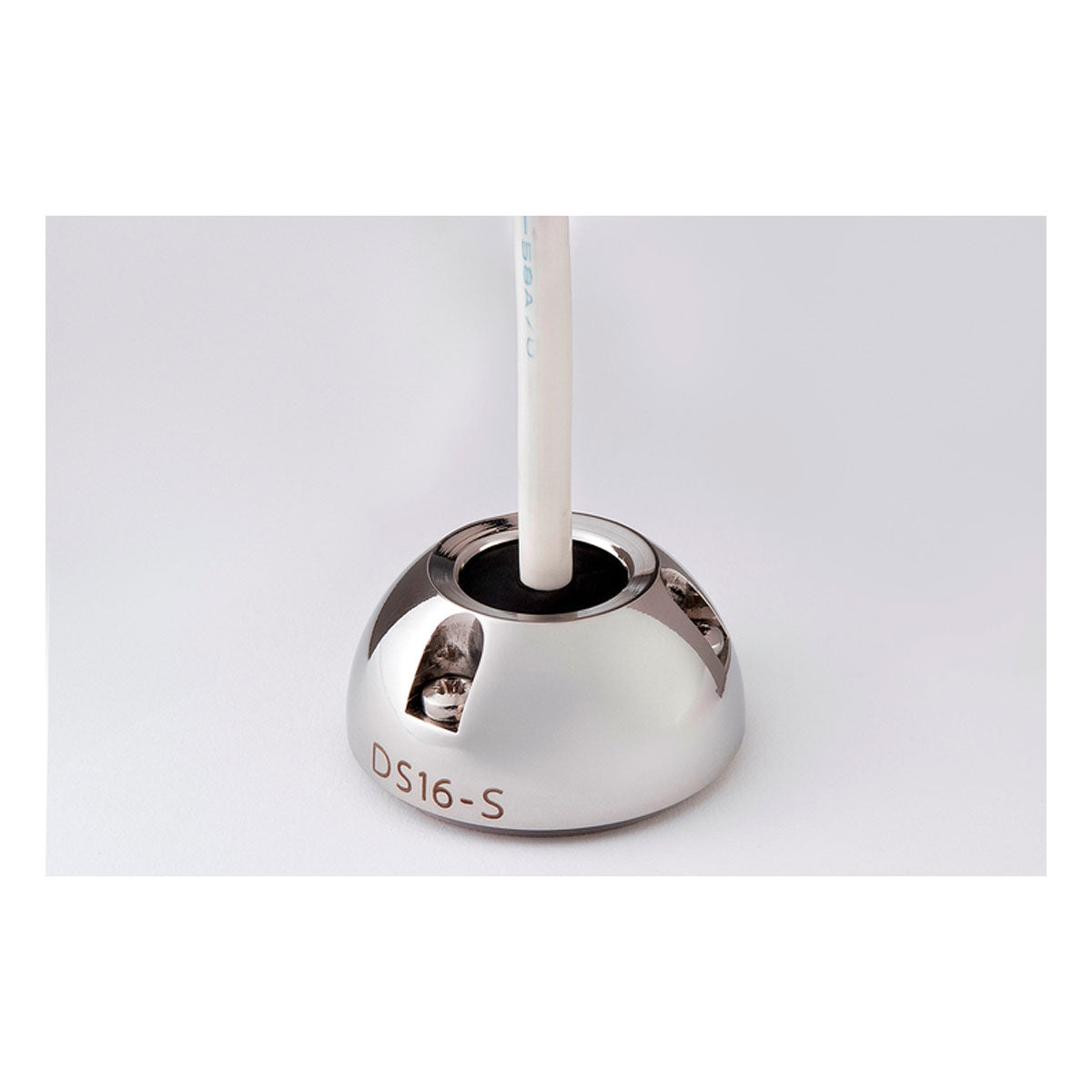

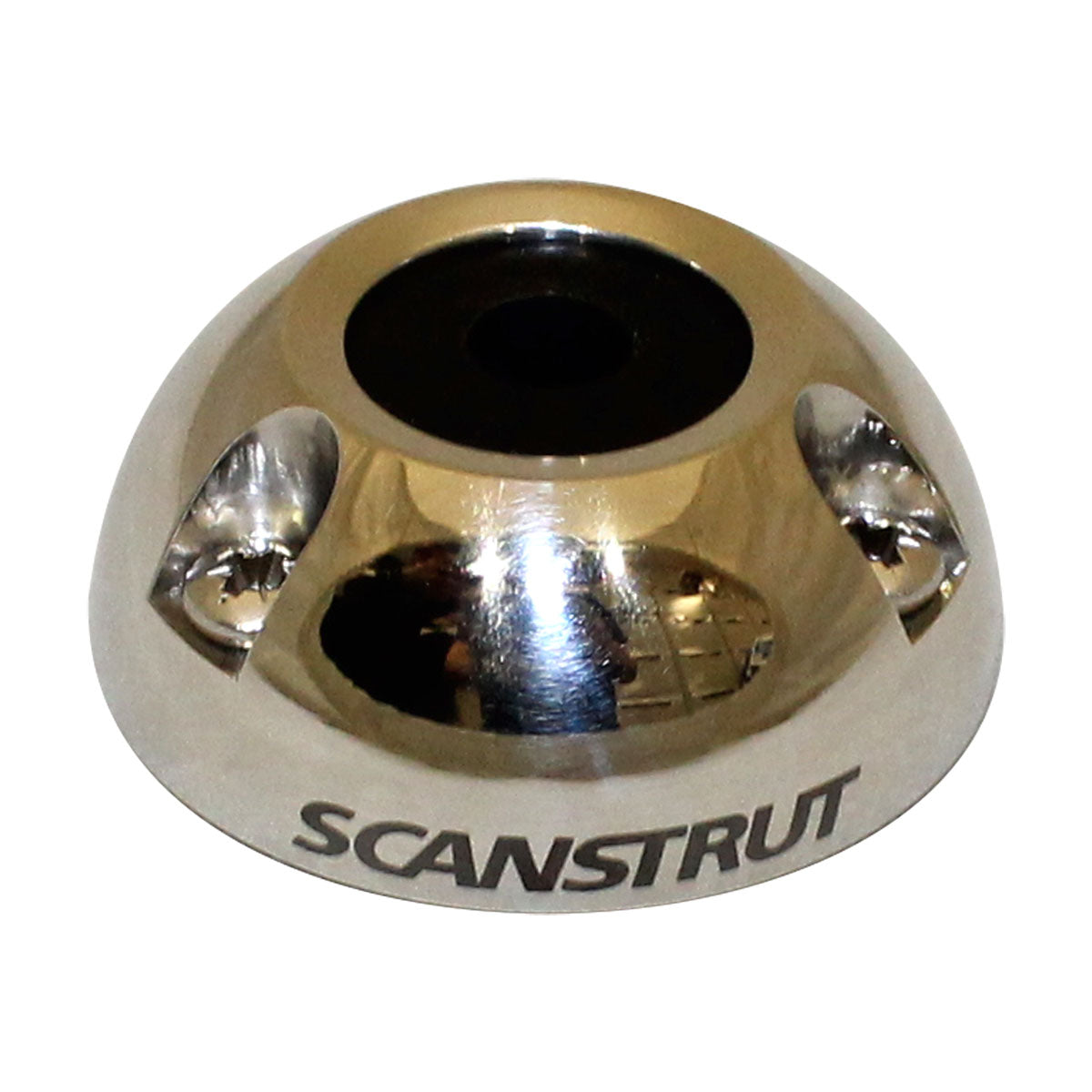

Available in impact resistant and U.V. stable plastic or marine grade 316 stainless steel
Waterproof rating IPX7
a = over all diam , b = glamd diam, e = cable diam
| BLA CODE | BULK BLA CODE | A MM | B MM | C MM | D MM | E MM | MATERIAL |
|---|
| 115658 | 115658B | 30 | - | 27 | 17 | 2-6 | Plastic |
| 115660 | 115660B | 39 | 16 | 36.5 | 19 | 2-8 | Plastic |
| 115662 | 115662B | 49 | 21 | 45.7 | 20.5 | 4-8 | Plastic |
| 115664 | 115664B | 49 | 21 | 45.7 | 20.5 | 9-14 | Plastic |
| 115668 | 115668B | 59 | 30 | 56 | 20.5 | 9-14 | Plastic |
| - | 115669B | 69 | 40 | 66 | 21.7 | 12-15 | Plastic |
| 115672 | 115672B | 39 | 16 | 36.5 | 19 | 2-8 | Stainless Steel |
| 115676 | 115676B | 49 | 21 | 45.7 | 20.5 | 4-8 | Stainless Steel |
| 115678 | 115678B | 49 | 21 | 45.7 | 20.5 | 9-14 | Stainless Steel |
| 115680 | - | 59 | 30 | 56 | 20.5 | 9-14 | Stainless S |
