Description

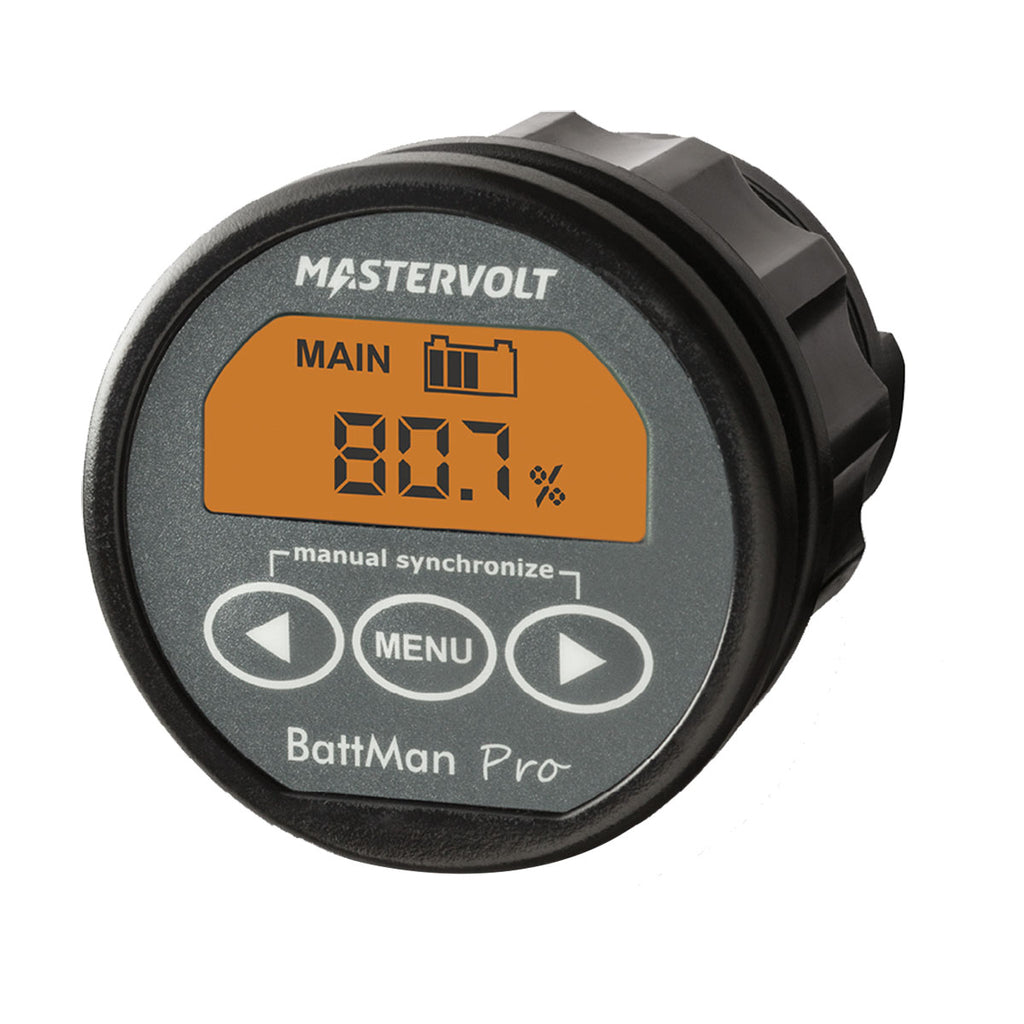

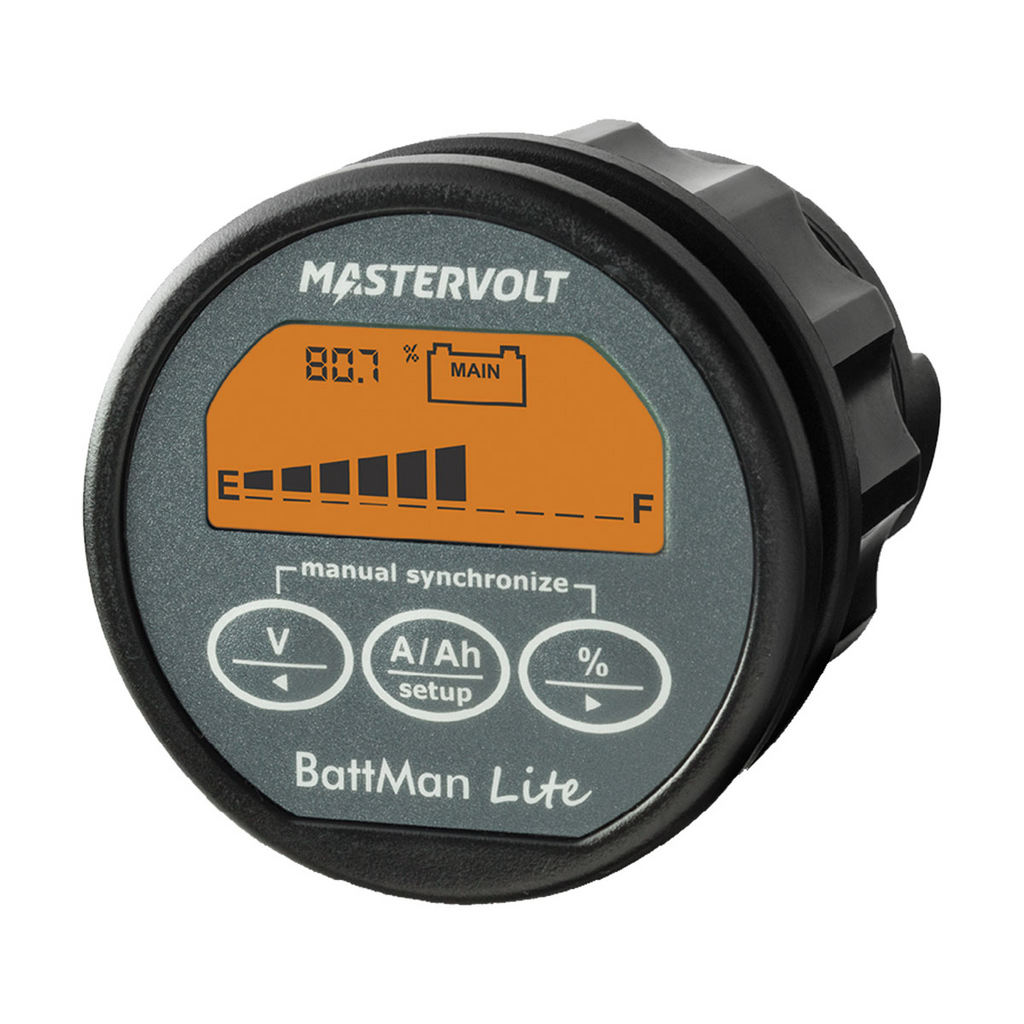

The BattMan models are an affordable battery monitor providing critical information about the status of your battery bank under all circumstances. The monitor has a large splashproof LCD display with backlight that selectively displays voltage, charge and discharge current, consumed amp hours and remaining battery capacity. Moreover it will warn you when your battery bank is empty. The monitor has a second battery input that can be used to monitor an auxiliary battery like a starter battery and is easy to install due to its quick nut mounting construction. BattMan is available in 2 versions; Lite and Pro. BattMan Pro displays the remaining time before your battery needs to be charged and stores special battery status events. BattMan is supplied with a 500 A shunt, screwdriver, clear installation and operation instruction manual in English, Dutch, German and French.
Features
• Large splash proof LCD display with backlight (IP65)
• Reliable display showing the status of your battery bank (V, A, Ah & remaining capacity)
• Monitors two battery banks
• Quick nut mounting construction
• Programmable alarm relay
• Includes a 500A shunt & screwdriver
• CE certified
• Made in Holland
• Clear installation and operation instruction manual
• Remaining time (BattMan Pro)
• Remembers special battery status events (BattMan Pro)
| BLA Code | 110670 | 110672 |
|---|---|---|
| Description | Mastervolt Battman Lite | Mastervolt Battman Pro |
| Max. Ah Capacity | 999 Ah | 9999 Ah |
| Supply Voltage | 9 - 35 V | 9 - 35 V |
| Voltage Range | 0 - 35 V | 0 - 35 V |
| Current Consuption (backlight off) | 8 mA / 12 V - 6 mA / 24 V | 8 mA / 12 V - 6 mA / 24 V |
| Current Consumption (backlight on) | 30 mA / 12 V - 17 mA / 24 V | 30 mA / 12 V - 17 mA / 24 V |
| Voltage Resolution | 0.1 V | 0.01 V |
| Voltage Accuracy | ± 0.3 % | ± 0.3 % |
| Shunt Specification | 500 A / 50 mV (service set) | 500 A / 50 mV (service set) |
| Current Measurement Range | 0 - 500 A (optional 900 A) | 0 - 500 A (optional 900 A) |
| Current Accuracy | ± 0.4% | ± 0.4% |
| Battery Alarm Contact | yes, potential free | yes, potential free |
| Remaining Time | no | yes |
| Historic Data | no | yes |
| Languages Display | Universal | Universal |
