Description

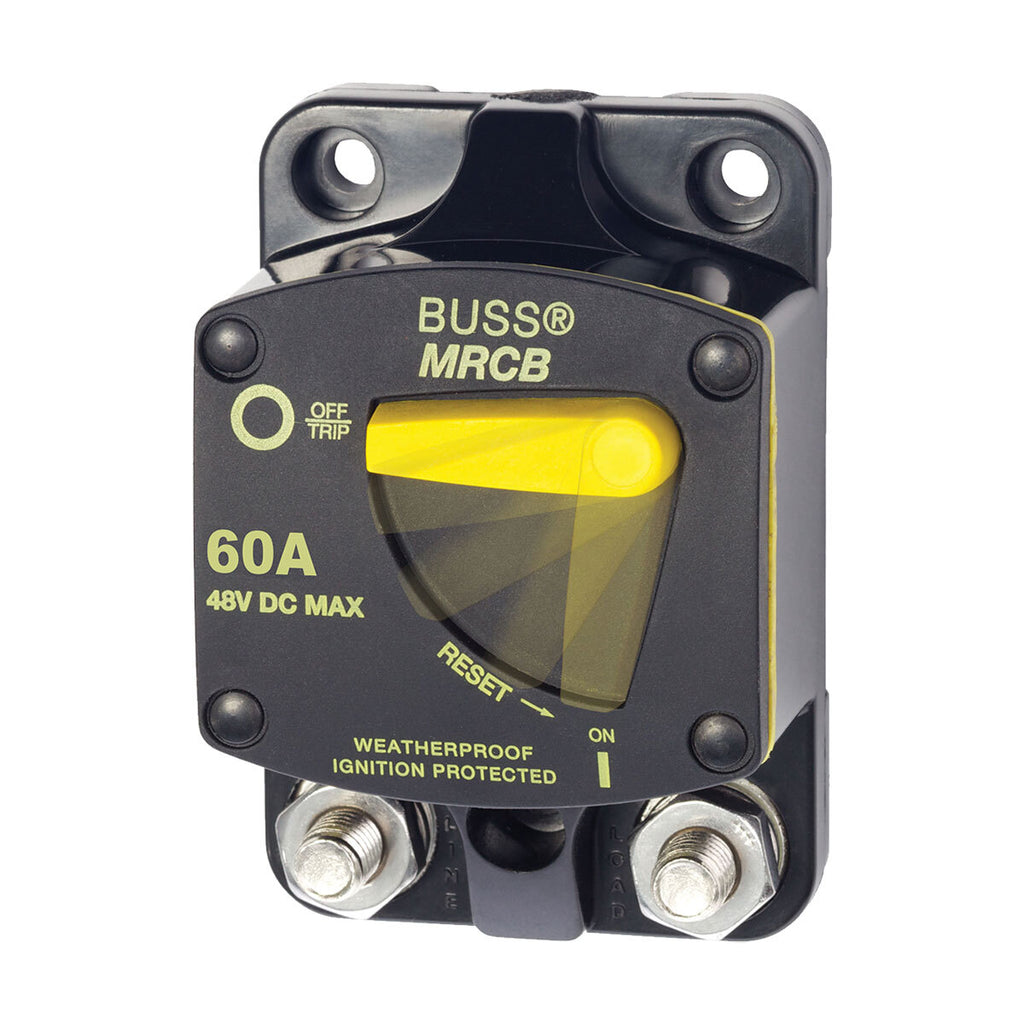

Provides circuit protection for 25 to 200 amp loads when switching and circuit protection are both required
Features
Self-trimming case eliminates need for mounting panels or trim bezels
Visible yellow reset lever shows open condition
Trip-free design cannot be held closed after trip
Recessed mounting holes for clean appearance
Specifications
Interrupting Capacity 5,000A @ 12V DC, 3,000A @ 24V DC, 1,500A @ 42V DC
Voltage Max. Operating 48V DC
Temperature Min. Operating -40ºC
Temperature Max. Operating 85ºC
Type Thermal
Class Type III - Switchable/Manual Reset - Trip Free
Terminal Stud 5/16"-18
Terminal Stud Torque 75 in-lb max.
Trip Time Delay See bluesea.com
Mounting Hole Accepts #10 (M5) Screw
| PANEL MOUNT BLA CODE | SURFACE MOUNT BLA CODE | AMPS |
|---|
| BS-7036 | 30 | |
| BS-7038 | 40 | |
| BS-7039 | 50 | |
| BS-7040 | BS-7140 | 60 |
| BS-7041 | 70 | |
| BS-7044 | BS-7144 | 100 |
| BS-7048 | BS-7148 | 150 |
| BS-7049 | BS-7149 |
