Description
Combines switching and circuit protection into a single device.
DC Features
Large frame provides stud termination for 5-300 Amp loads
Provides overcurrent protection for inverters, bow thrusters, and windlasses
Offers high interrupt capacity - suitable for
Main circuit protection
Trip Free - cannot be held closed after trip
AC Features
Frequently used for 120/240 Volt AC circuit protection
Double pole can be used as AC Main circuit breaker to switch hot and neutral or two hots in 120/240 Volt AC Branch applications
Triple pole can be used as 120/240 Volt AC Main circuit breaker to switch both lines (hots) and neutral
Double and triple pole circuit breakers will trip all poles if any one pole trips
| BLA CODE | COLOUR | AMPS | MAX DC VOLTS |
|---|

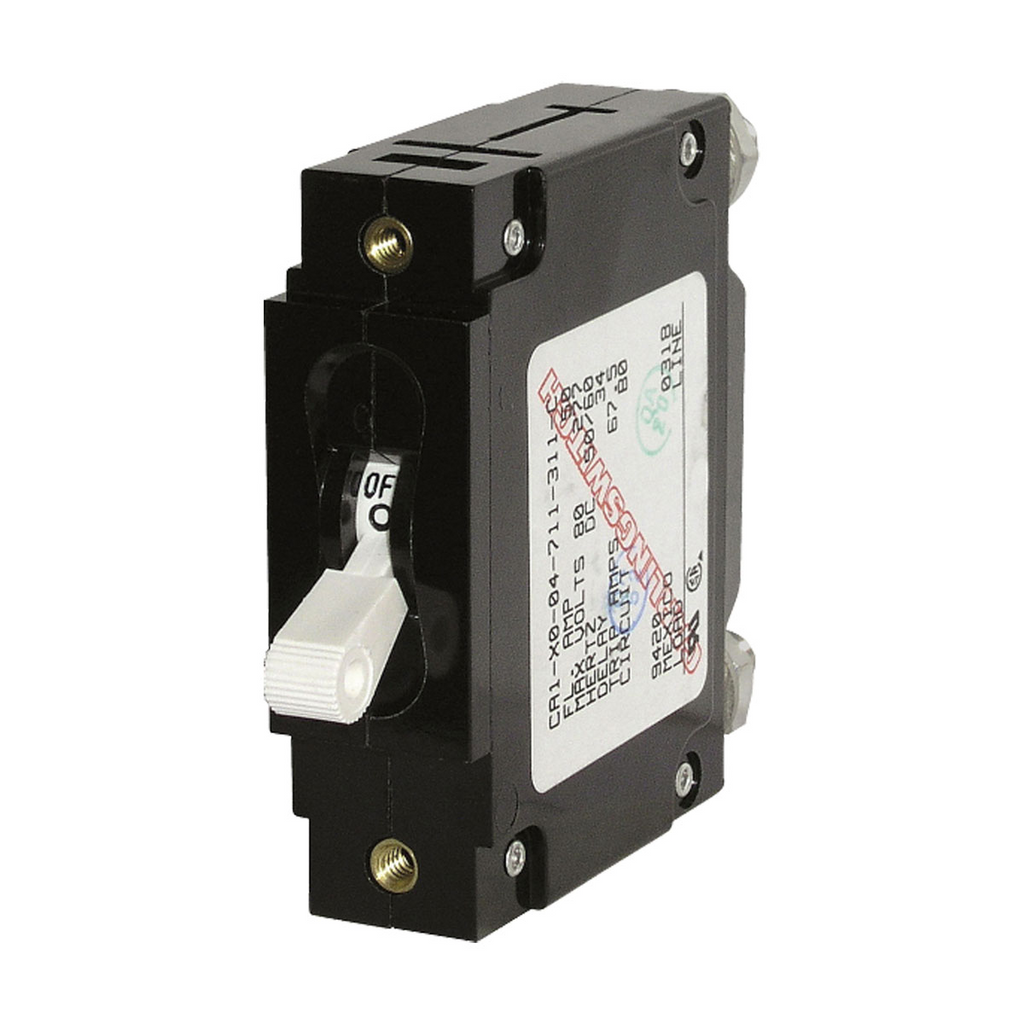

| Single Pole | |||
| BS-7350 | White | 5 DC | 80 |
| BS-7351 | White | 10 DC | 80 |
| BS-7352 | White | 15 DC | 80 |
| BS-7354 | White | 25 DC | 80 |
| BS-7355 | White | 30 DC | 80 |
| BS-7244 | White | 50 DC | 80 |
| BS-7250 | White | 100 DC | 65 |
| BS-7250I | Red | 100 DC | 48 |
| Double Pole | |||
| BS-7256 | White | 80 AC | 80 |

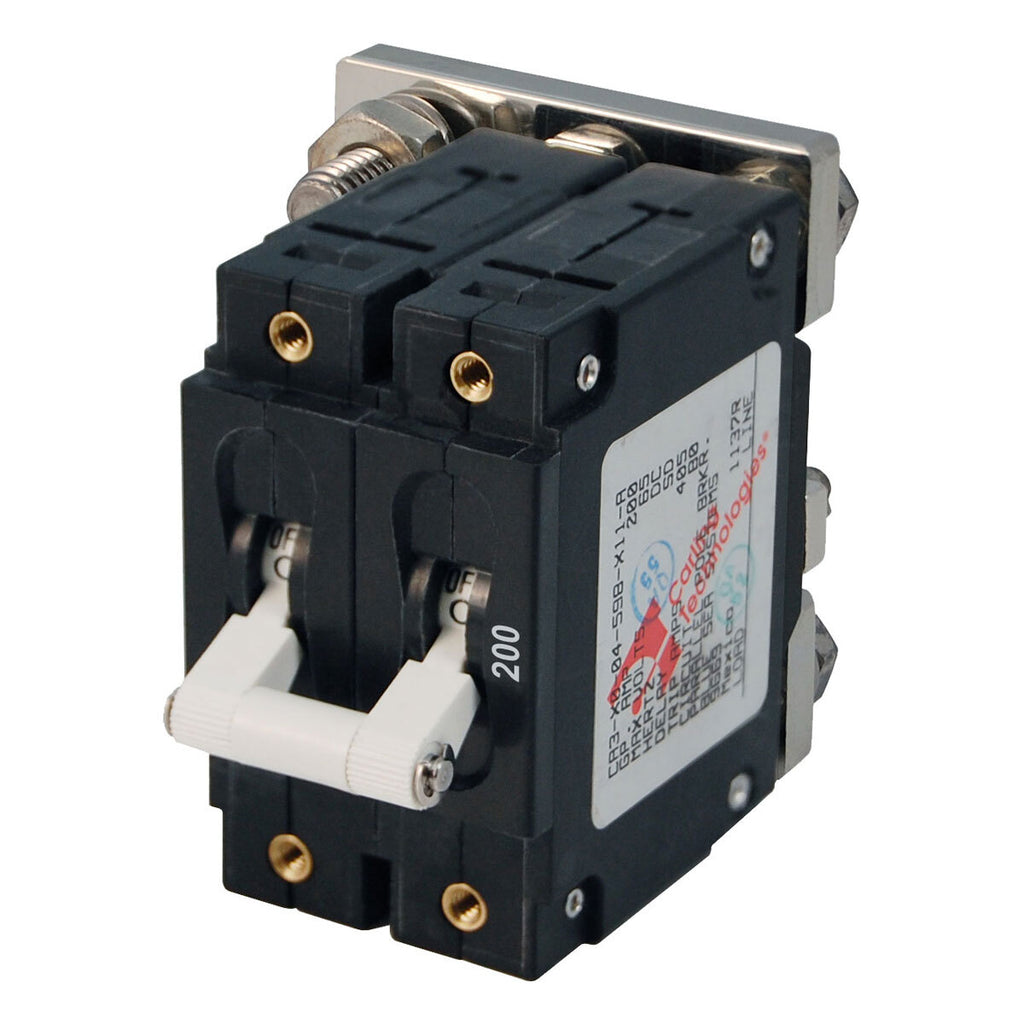

| BS-7269 | White | 200 DC | 65 |
| Triple Pole | |||

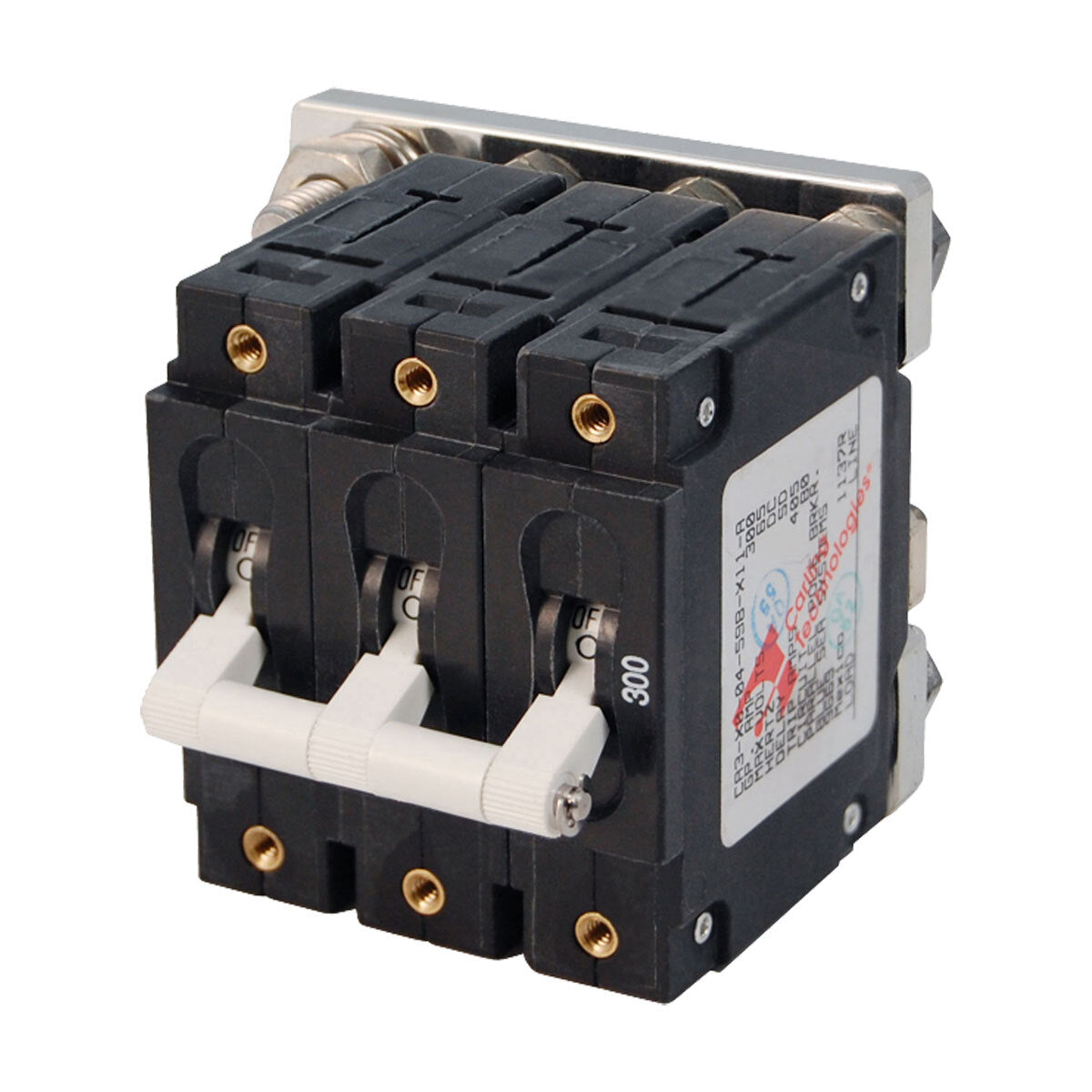

| BS-7271 | White | 300 DC | 65 |
