Description
Combines switching and circuit protection into a single device.
- The standard circuit breaker for Blue Sea Systems Traditional Metal Power Distribution Panels
- Single pole is frequently used for AC or DC Branch circuit protection
- Double pole is typically used for AC Main circuit protection
- Trip Free - cannot be held closed after trip
Specifications
- Voltage Nominal Operating 120/240V AC
- Operating Temperature -40-85 C
- Switching Cycles 1000 @ rated amps and volts
- Terminal Screw- #10-32
| BLA CODE | COLOUR | AMPS | POLE | MAX. DC VOLTS |
|---|
|
|
|
|
|
|
|---|---|---|---|---|

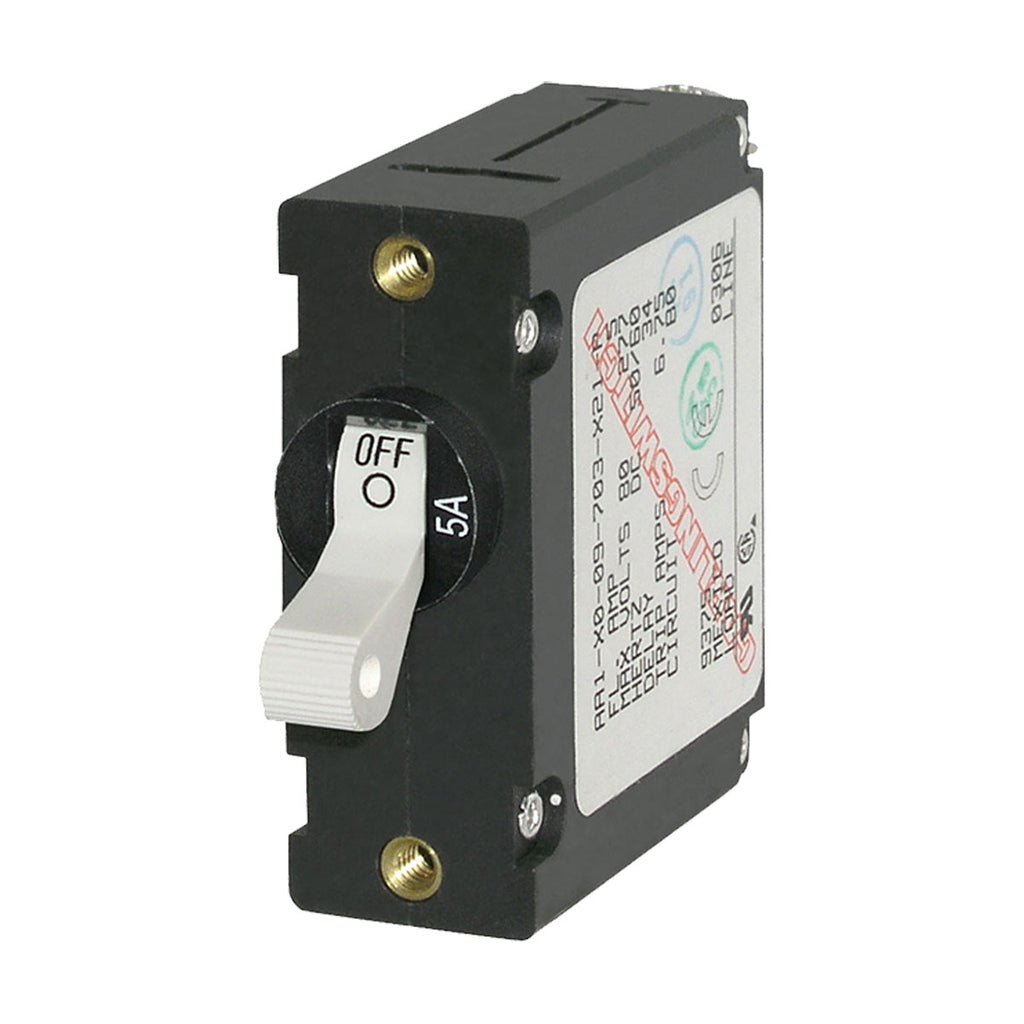

| BS-7202 | White | 5 | 1 | 65 |
| BS-7205 | Red | 10 | 1 | 65 |
| BS-7206 | White | 10 | 1 | 65 |
| BS-7208 | Black | 15 | 1 | 32 |
| BS-7210 | White | 15 | 1 | 65 |
| BS-7212 | Black | 20 | 1 | 65 |
| BS-7213 | Red | 20 | 1 | 32 |
| BS-7214 | White | 20 | 1 | 65 |
| BS-7216 | Black | 25 | 1 | 65 |
| BS-7218 | White | 25 | 1 | 65 |
| BS-7220 | Black | 30 | 1 | 32 |
| BS-7221 | Red | 30 | 1 | 65 |
| BS-7222 | White | 30 | 1 | 65 |
| BS-7224 | Black | 40 | 1 | 65 |
| BS-7226 | White | 40 | 1 | 32 |
| BS-7228 | Black | 50 | 1 | 32 |
| BS-7229 | Red | 50 | 1 | 65 |
| BS-7230 | White | 50 | 1 | 32 |
| BS-7299 | White | 8 | 5 | 65 |

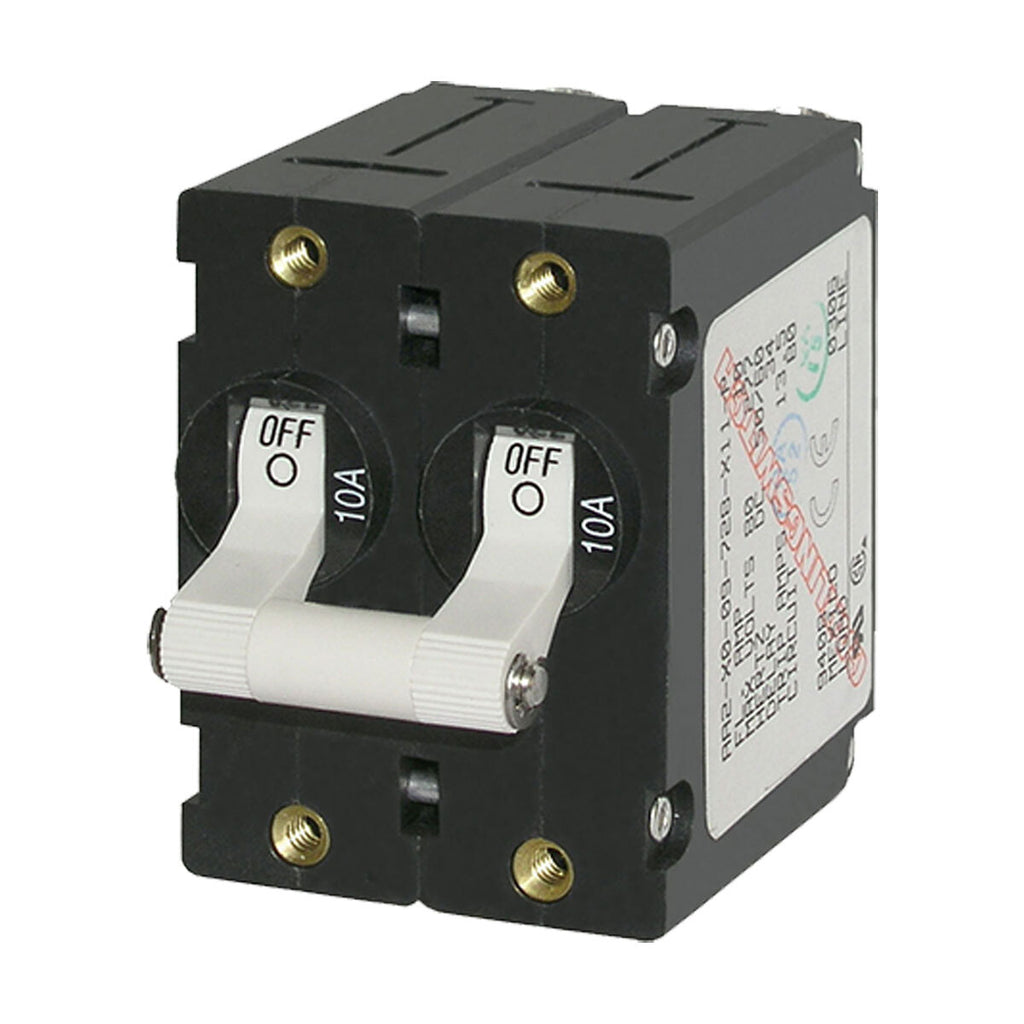

| Double Pole Circuit Bre | ||||
| BS-7233 | White | 10 | 5 | 65 |
| BS-7242 | White | 50 | 5 | 65 |
