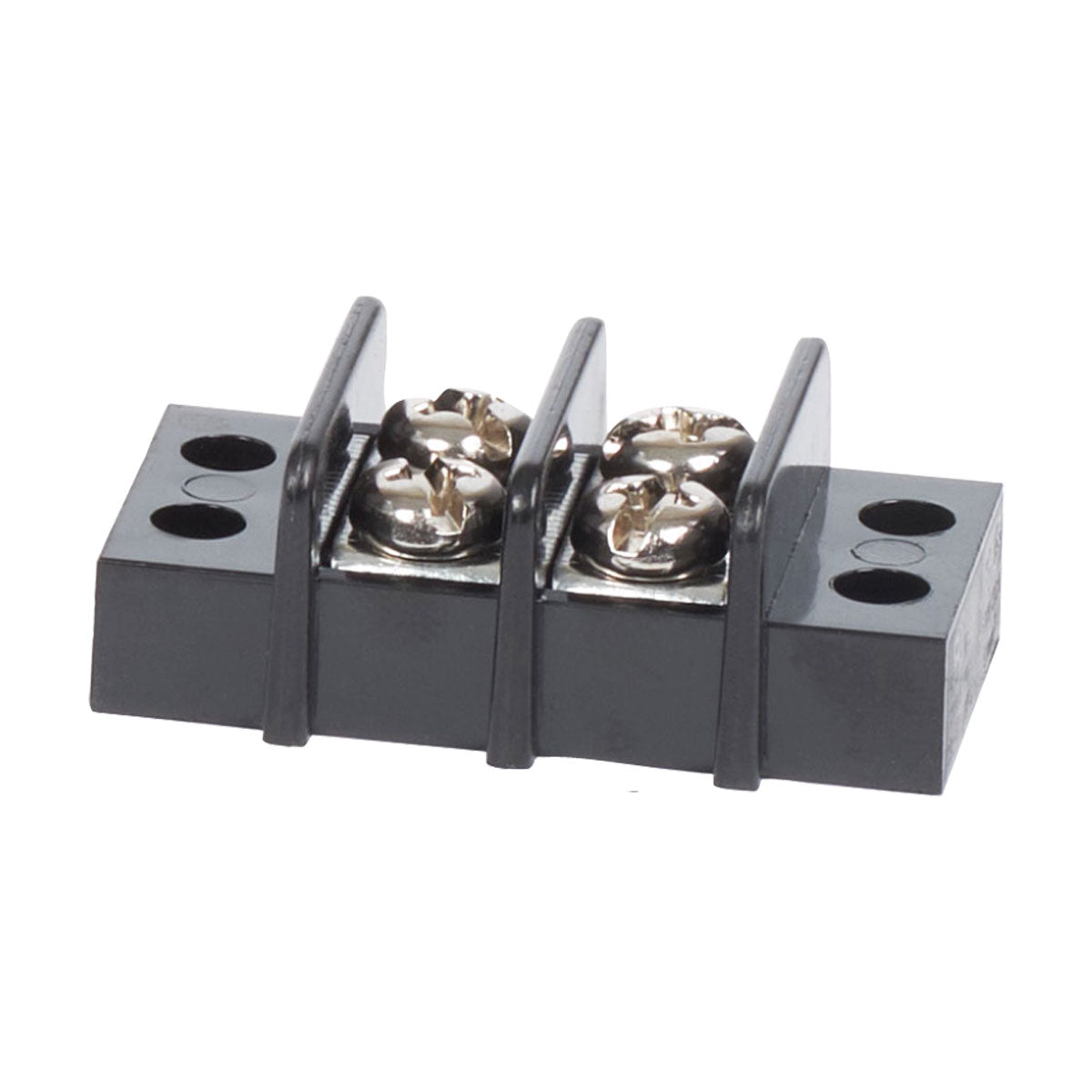

Description
Fully insulated independent terminal blocks to isolate circuits
Features
• Each screw pair is one isolated circuit
• Terminal Block Jumpers allow creation of common circuits
• Closed back design insulates power from the mounting surface
| BLA Code | Circuits | AC/DC Amps A | AC/DC Volts V | Terminal Screw | Length mm (A) | Mounting Centres mm (B) |
|---|---|---|---|---|---|---|
| BS-2402 | 2 | 20 | 300 | #6 | 36 | 29 |
| BS-2404 | 4 | 20 | 300 | #6 | 55 | 48 |
| BS-2406 | 6 | 20 | 300 | #6 | 74 | 67 |
| BS-2408 | 8 | 20 | 300 | #6 | 93 | 86 |
| BS-2410 | 10 | 20 | 300 | #6 | 112 | 105 |
| BS-2502 | 2 | 30 | 600 | #8 | 54 | 43 |
| BS-2504 | 4 | 30 | 600 | #8 | 83 | 71 |
| BS-2506 | 6 | 30 | 600 | #8 | 111 | 100 |
| BS-2510 | 10 | 30 | 600 | #8 | 168 | 157 |
| BS-2512 | 12 | 30 | 600 | #8 | 197 | 186 |
| BS-2602 | 2 | 65 | 600 | #10 | 64 | 52 |
| BS-2604 | 4 | 65 | 600 | #10 | 99 | 87 |
| BS-2606 | 6 | 65 | 600 | #10 | 99 | 122 |
| BS-2608 | 8 | 65 | 600 | #10 | 134 | 157 |
| BS-2610 | 10 | 65 | 600 | #10 | 203 | 192 |
