Description

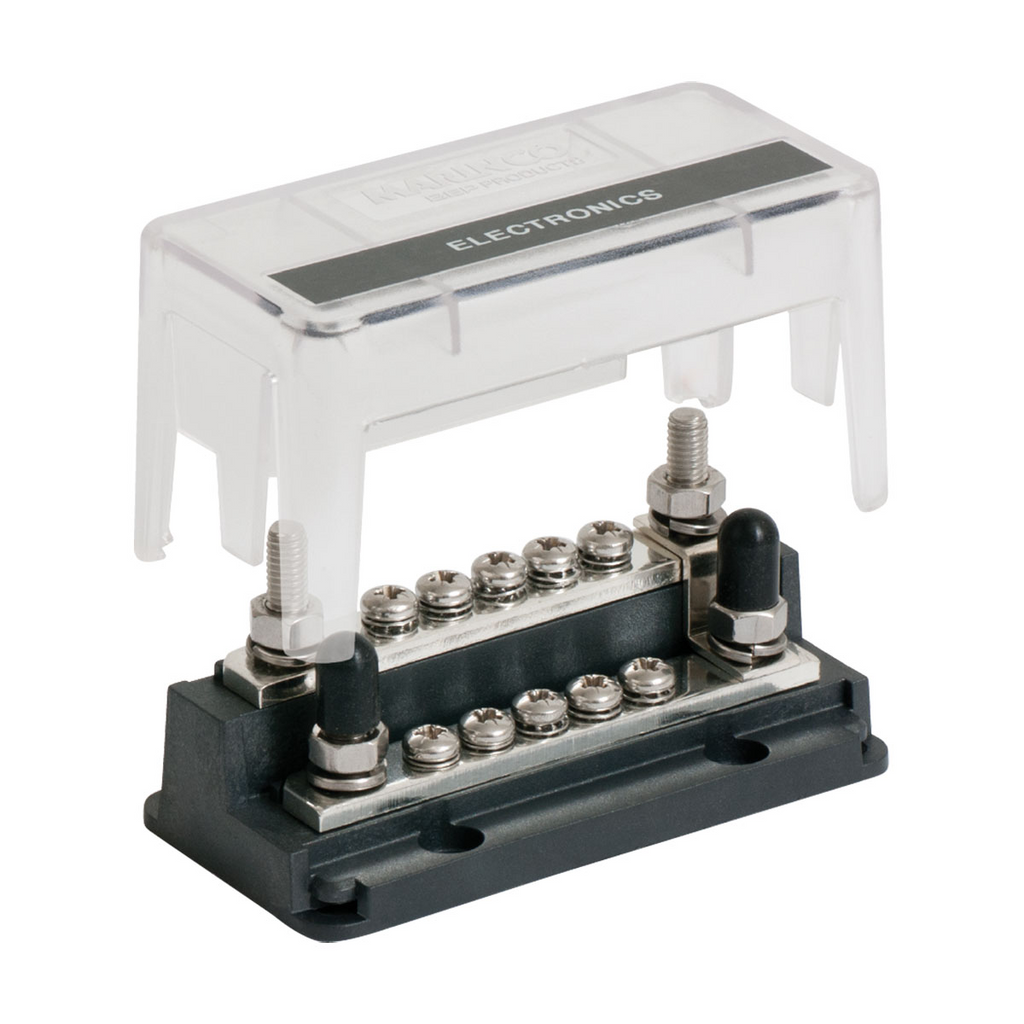

Marinco Products have created a completely new concept for small cable termination with the Z-Bar range. These busbars maximise power density by utilising high and low level bars to optimise cable runs, saving even more installation space.
Specifications
10 Way and 18 Way versions
4x 6mm (1/4″) studs with anti-seize lubricant
4mm (5/32″) terminals with captive lock washers
200A maximum per bar (2 x 200A)
50VDC
Tinned CDA102 Copper conductors
Stainless steel studs, washers, nuts for longevity in the marine environment
Metric threads
| BLA CODE | DESCRIPTION | QTY | FOOTPRINT* |
|---|
| 114614P | 10 way, Z busbar | 1 | 1 x |
| 114614B10 | 10 way, Z busbar | 10 | 1 x |
| 114616P | 18 way, Z busbar | 1 | 1.5 x |
