Description

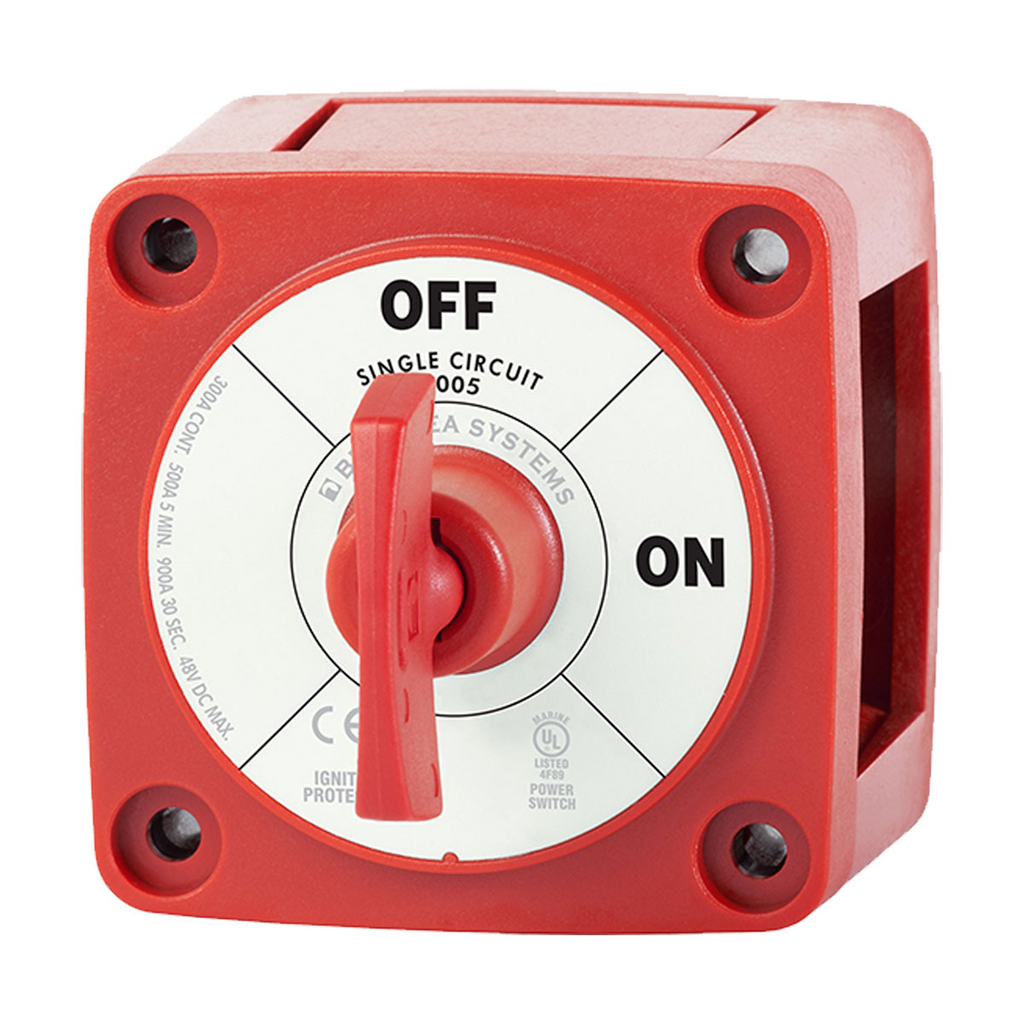

300 Amps continuous rated battery switches for simultaneously switching two isolated battery banks or circuits BS-6010- Simultaneously switches two isolated battery banks or circuits. May be used to switch the positive and negative conductors for required applications BS-6011(B)- Simultaneously switches two isolated battery banks or combines battery banks to all loads. CAN NOT be used to switch and positive conductors due to its combine feature.
Features
• Tin-plated copper studs for maximum conductivity and corrosion resistance
• Studs accept 3/8″ (M10) ring terminals
• One-piece stainless flange nuts ensure safe and secure connections
• Isolating cover protects rear contacts
• Breakout tabs allow wire access in any direction
• 6 Circuit label set included (not included with 6005 and 6005200)

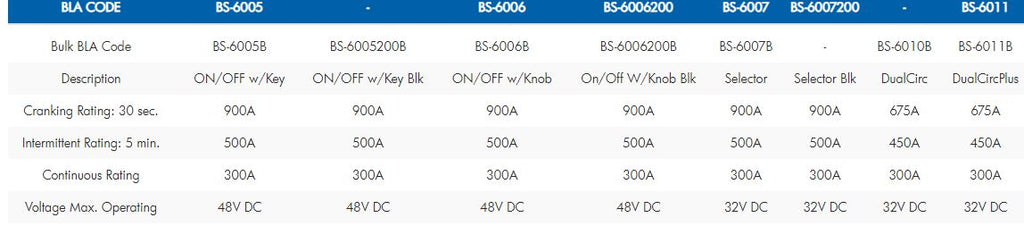

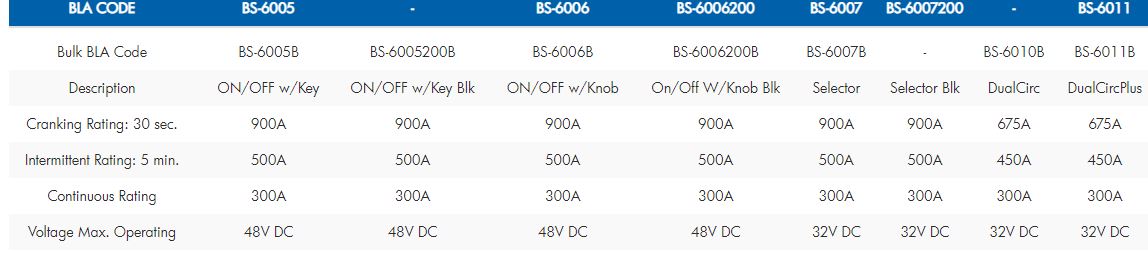

| BLA Code | BS-6005 | - | BS-6006 | BS-6006200 | BS-6007 | BS-6007200 | - | BS-6011 |
|---|---|---|---|---|---|---|---|---|
| Description | ON/OFF w/Key | ON/OFF w/Key Blk | ON/OFF w/Knob | On/Off W/Knob Blk | Selector | Selector Blk | DualCirc | DualCircPlus |
| Cranking Rating: 30 sec. | 900A | 900A | 900A | 900A | 900A | 900A | 675A | 675A |
| Intermittent Rating: 5 min. | 500A | 500A | 500A | 500A | 500A | 500A | 450A | 450A |
| Continuous Rating | 300A | 300A | 300A | 300A | 300A | 300A | 300A | 300A |
| Voltage Max. Operating | 48V DC | 48V DC | 48V DC | 48V DC | 32V DC | 32V DC | 32V DC | 32V DC |
