Description

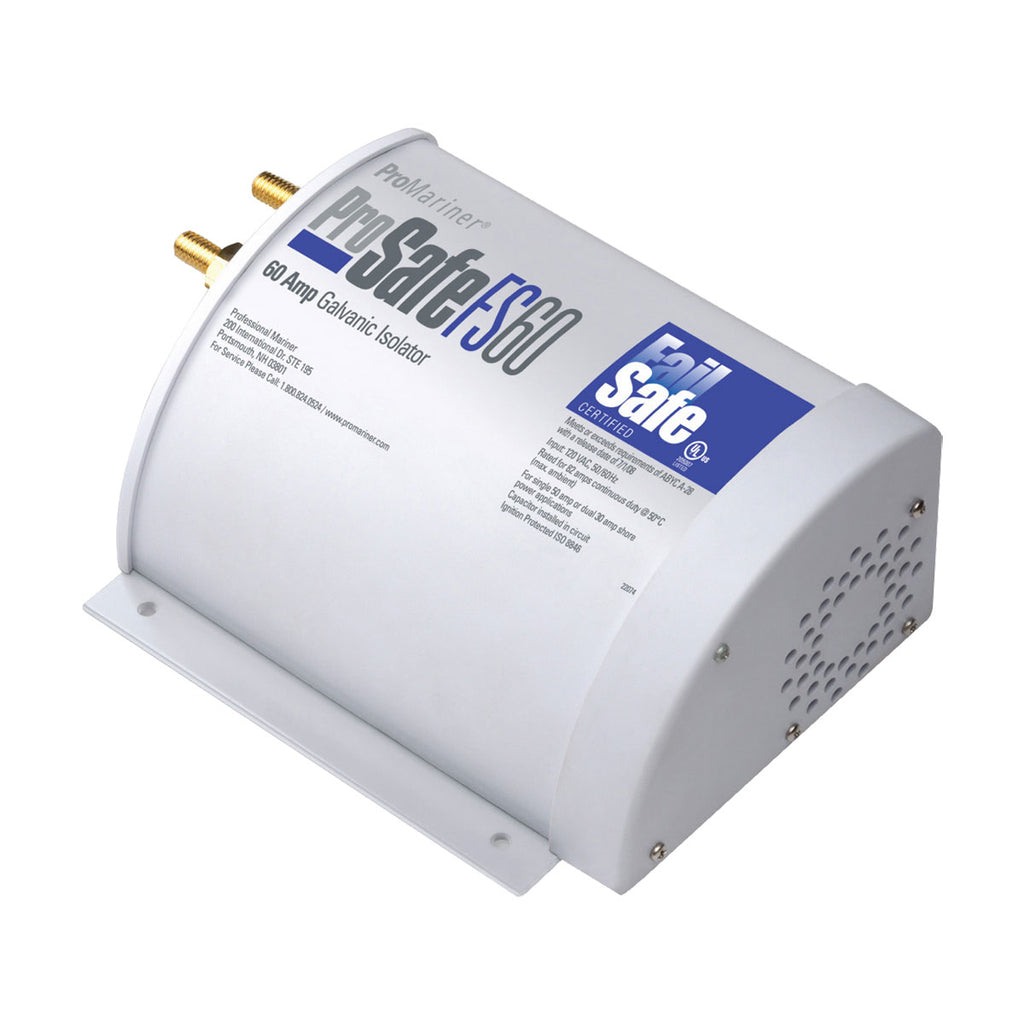

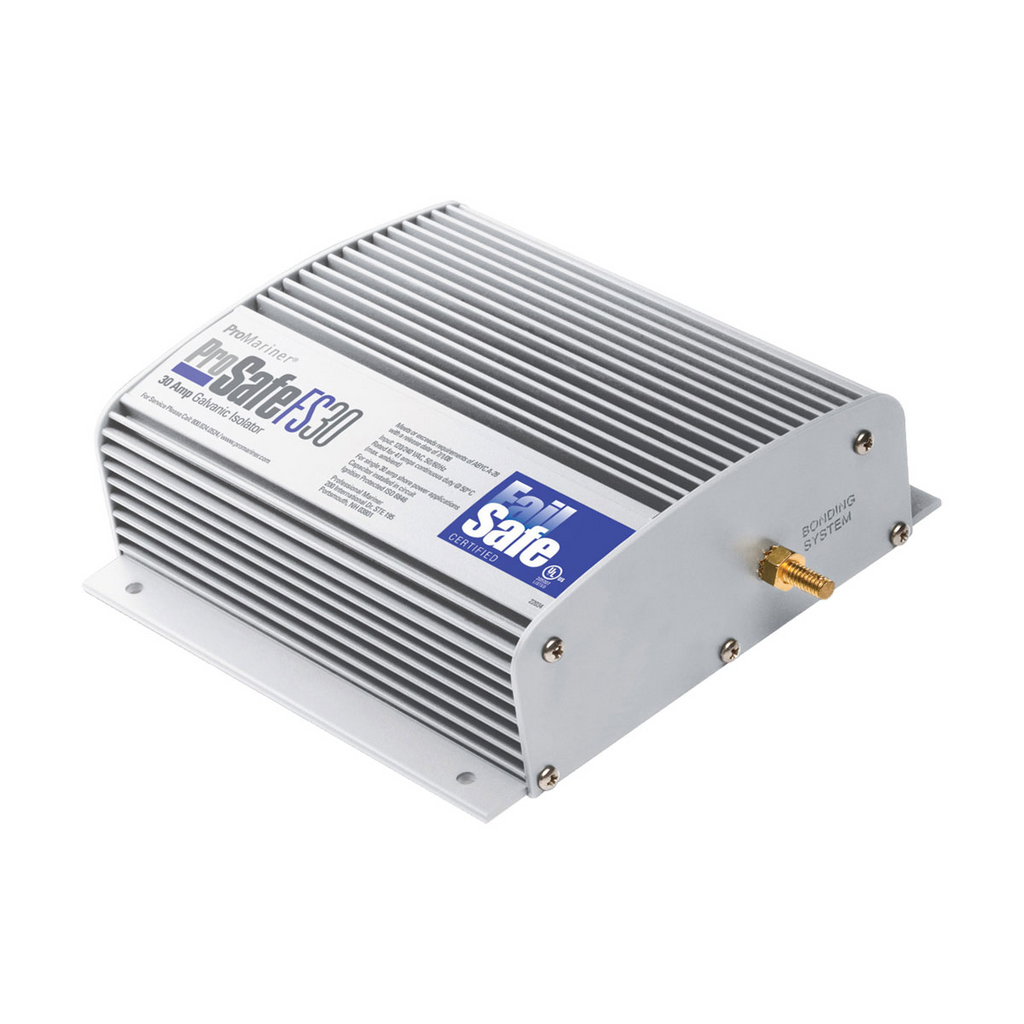

FailSafe technology with peace of mind dependability. The ProSafe FS Series of FailSafe 30 and 60 Amp Galvanic Isolators will interrupt galvanic current flow with other boats at a marina when installed on a boat which is connected to AC Shore Power. This technology maintains AC safety ground and solves the most common forms of corrosion and premature zinc loss within a boats bonding system.
Features
Insures shore power safety ground wire is maintained through the isolator
Flat pack high power semiconductors Robust high power diodes allow the FS Series to meet the new FailSafe criteria for conducting inrush currents 3,000 and 5,000 amps (FS30 and FS60 respectively)
Innovative design The FS60 will cool itself in the event it must conduct current insuring cooler operation in this mode
Ignition protected
Gold plated terminations
BLA CODE | 114481 | 114483 |
---|
Description | FAILSAFE30 | FAILSAFE60 |
General Specifications | ||
Ratings | 120/240 VAC 41A 50 or 60 Hz | 120/240 VAC 82A 50 or 60 Hz |
Dimensions, H x W x D mm | 17.1 x 17.8 x 6.4 | 18.4 x 16.5 x 9.5 |
Weight kg | 1.4 | 1.7 |
Max. Temp | 50° C | 50° C |
