Description

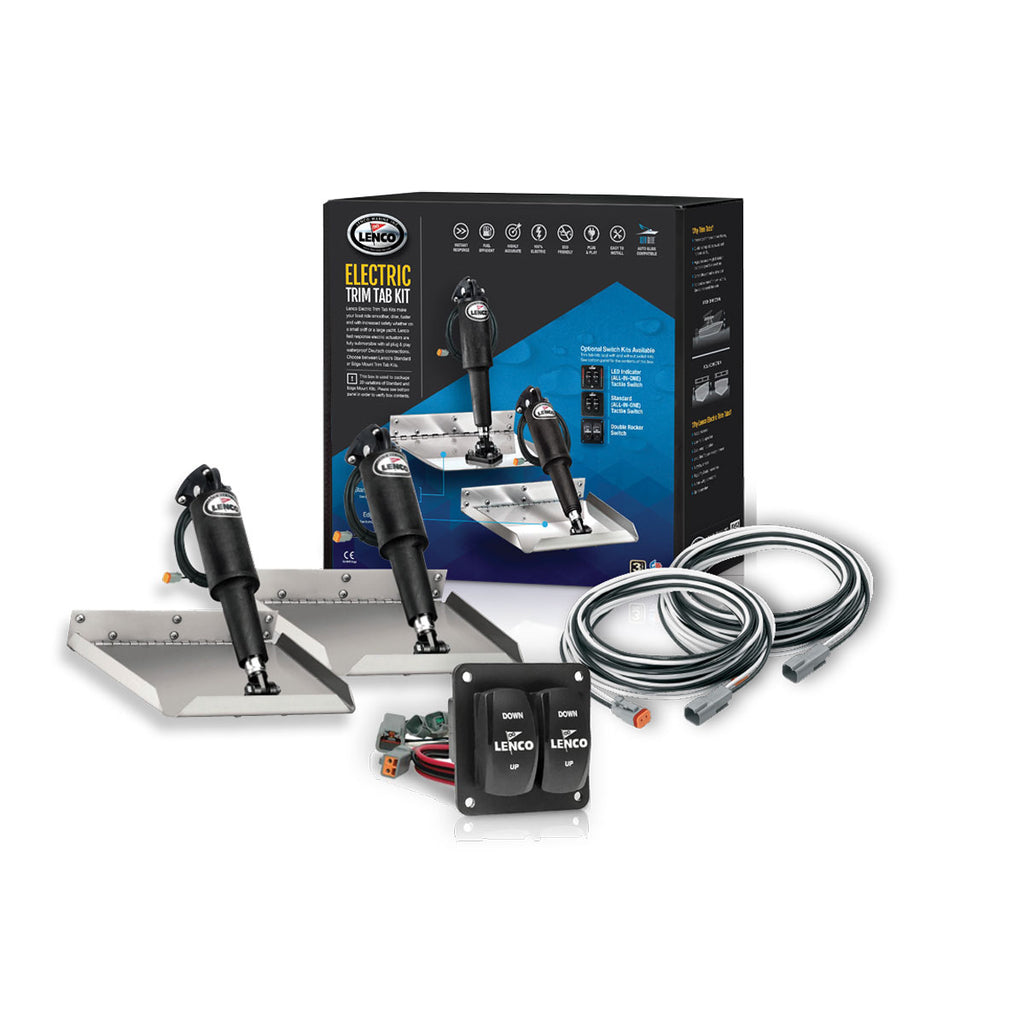

Complete Edge Mount Trim Kit
Everything you need in one box! The Edge Mount trim tab kit with the added benefit of having the NEW integrated switch choice & power connector all included. Boat lengths 17’ (5.2 m) to 30’ (9.1 m). Blades are constructed of 12 gauge (2.7 mm) laser cut 304 stainless steel with a 1” (2.5 cm) turned up edges and a 5 degree taper on both sides to the trailing edge & 1/8” (3.2 mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with mechanical cable gland seal. Switch included.
Features
• Blades 12 Gauge stainless steel
• Switch kit Included
• Made in Stuart, Florida U.S.A.
• 2x 6.1m Actuator extension harness
• 2x Actuators with 1.8m harness
• 2x SS Blades with upper and lower mounting brackets
• 3 Year warranty
|
CODE
|
BLADE SIZE L X W IN | SWITCH KIT INCLUDED | RECOMMENDED BOAT LENGTH M |
| 312756 | 12 x 12 | Double Rocker Switch | 5.1 - 9.1 |
| 312776 | 12 x 12 | LED Switch | 5.1 - 9.1 |
