Description
Instant response electric actuators are made of high impact glass fibre filled, ultraviolet-resistant nylon material with 316 grade super buff stainless steel tubing. All actuators come with mounting hardware and 6' cable.

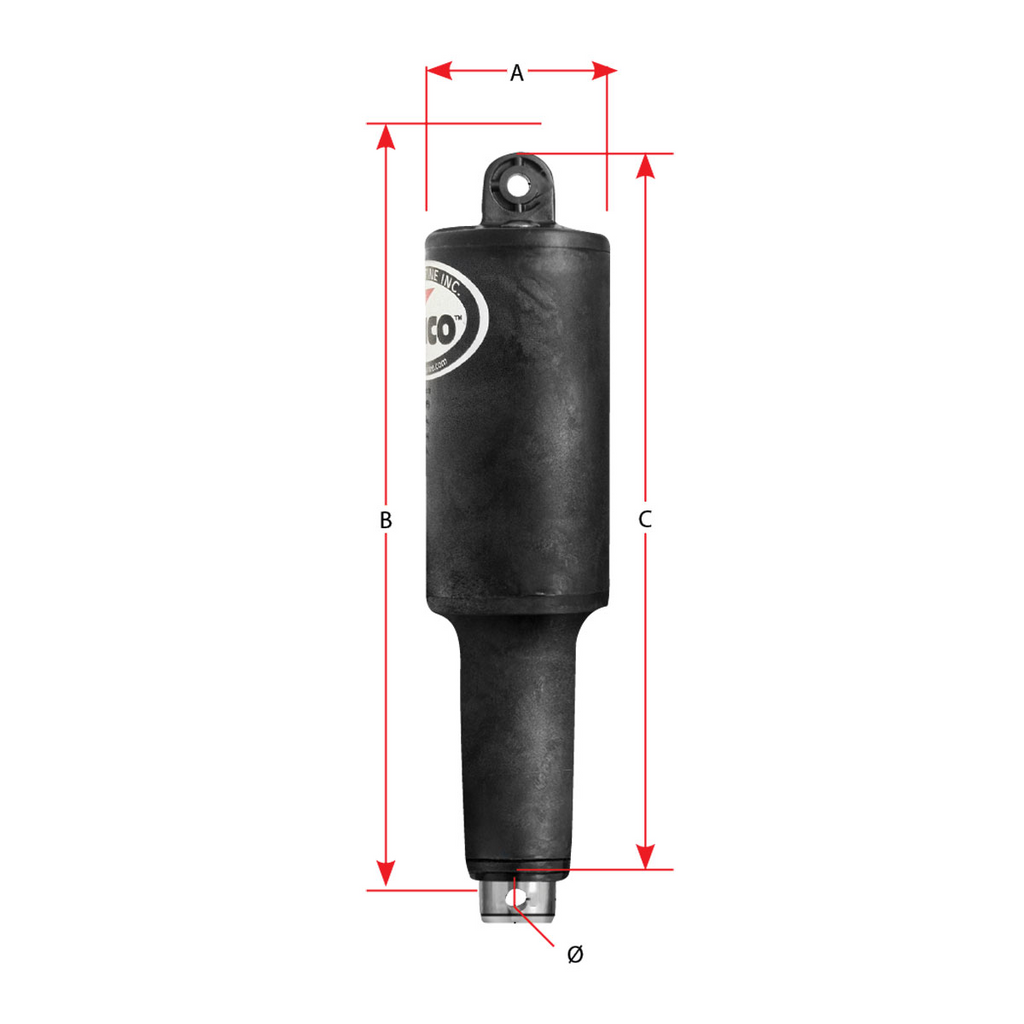

| BLA CODE | MODEL | VOLTS | DIA A MM | LENGTH B MM | LENGTH C MM | Θ MM |
|---|
| 312504 | 101 Standard | 12 | 63.5 | 318 | 292 | 7.9 |
| 312506 | 101 Standard | 24 | 63.5 | 318 | 292 | 7.9 |
| 312600 | 101 XD | 12 | 63.5 | 289 | 273 | 7.9 |
| 312604 | 101 XD | 12 | 63.5 | 289 | 273 | 9.5 |
| 312608 | 101 XDS | 12 | 63.5 | 276 | 260 | 7.9 |
| 312602 | 101 XDS | 24 | 63.5 | 289 | 273 | 7.9 |
| 312610 | 101 XDS | 12 | 63.5 | 276 | 260 | 9.5 |
| 312606 | 101 XDS | 24 | 63.5 | 289 | 273 | 9.5 |
| 312614 | 102 XDS | 12 | 63.5 | 327 | 311 | 7.9 |
| 312508 | 102 | 12 | 63.5 | 356 | 330 | 7.9 |
