Description

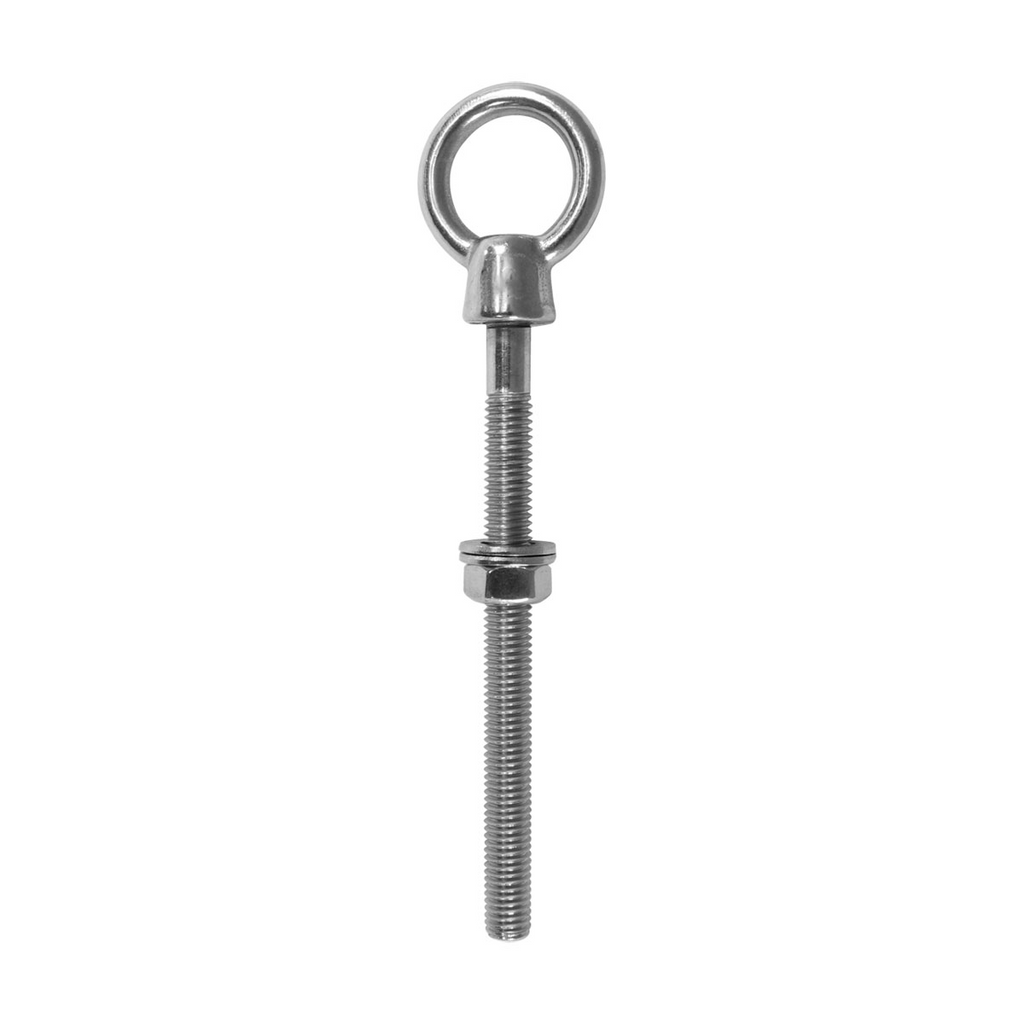

316 grade stainless steel eye bolt with cast, collared head. Supplied with nut and washer.
| BLA CODE | A THREAD | B MM | C MM | D MM | BREAK LOAD KG |
|---|
| 165044 | M6 | 110 | 80 | 16 | 1110 |
| 165046 | M8 | 140 | 100 | 20 | 1300 |
| 165048 | M10 | 170 | 120 | 25 | 2600 |
| 165050 | M12 | 200 | 140 | 30 | 3400 |
