Description

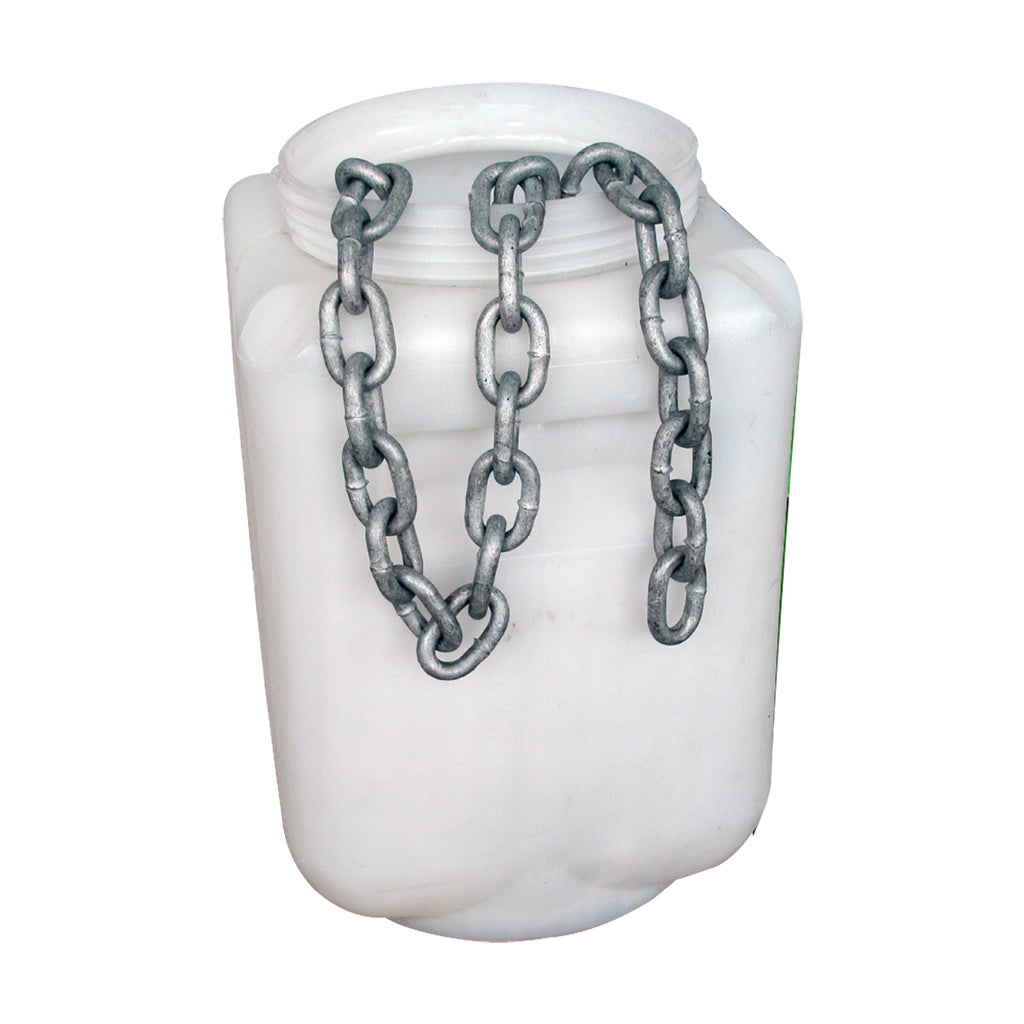

Australian Standard sized, hot dipped galvanised, grade 30, general link proof coil chain.
| BLA CODE | QTY APPROX. KG / M | DIA. MM | LENGTH MM | WIDTH MM | PITCH MM |
|---|
| 145006 | 50 / 60 | 6 | 39 | 25 | 27 |
| 145009 | 500 / 600 | 6 | 39 | 25 | 27 |
| 145010 | 50 / 37 | 8 | 48 | 29.5 | 32 |
| 145013 | 500 / 370 | 8 | 48 | 29.5 | 32 |
| 145014 | 50/ 23.5 | 10 | 60 | 37 | 40 |
| 145017 | 500 / 23.5 | 10 | 60 | 37 | 40 |
| 145021 | 500 / 166.5 | 12 | 70 | 44 | 46 |
| 145024 | 500 / 101 | 16 | 91.6 | 56.5 | 59.6 |
| 145027 | 500 / 61.5 | 20 | 113.3 | 70 | 73.3 |
