Description

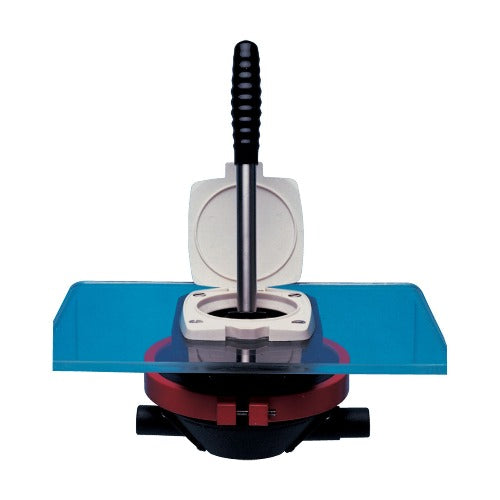

Designed specifically for low profile installations where space is limited. Quick and easy to fit and offers a wide variety of possible installation configurations. Suitable for saltwater, bilge water and even diesel. Constructed from stainless steel, glass reinforced polypropylene, acetal copolymer, nylon, PBDT, nitrile and EPDM rubber.
Features
Mounting hole positions are square - giving a choice of pump stroke directions relative to the position of the deckplate
Inlet and outlet mount bases are set at 45º relative to the pump body and have a square base that can be rotated, giving four possible hose directions on each side
Pump body can be rotated to accommodate different hose direction requirements
Supplied complete with deck plate
BLA CodeCapacity L/mCapacity g/mMax Lift mMax Head mHose Size mmMount Screws mm
BLA Code131012
Capacity 35 L/m
Capacity 9.2 g/m
Max Lift 3 m
Max Head 4 m
Hose Size 25mm
Mount Screws 6 mm c/s
Spare Parts
131230 Service kit - nitrile
131231 Deck plate kit
131232 Spare removable handle
131236 Ring clamping kit
131237 Rubber grip
131238 Diaphragm
131239 Rocker arm
131258 Valve inlet
131259 Valve outlet
131234 Deck plate kit rocker arm
N.B. Capacity measured at 70 strokes per minute
