Description

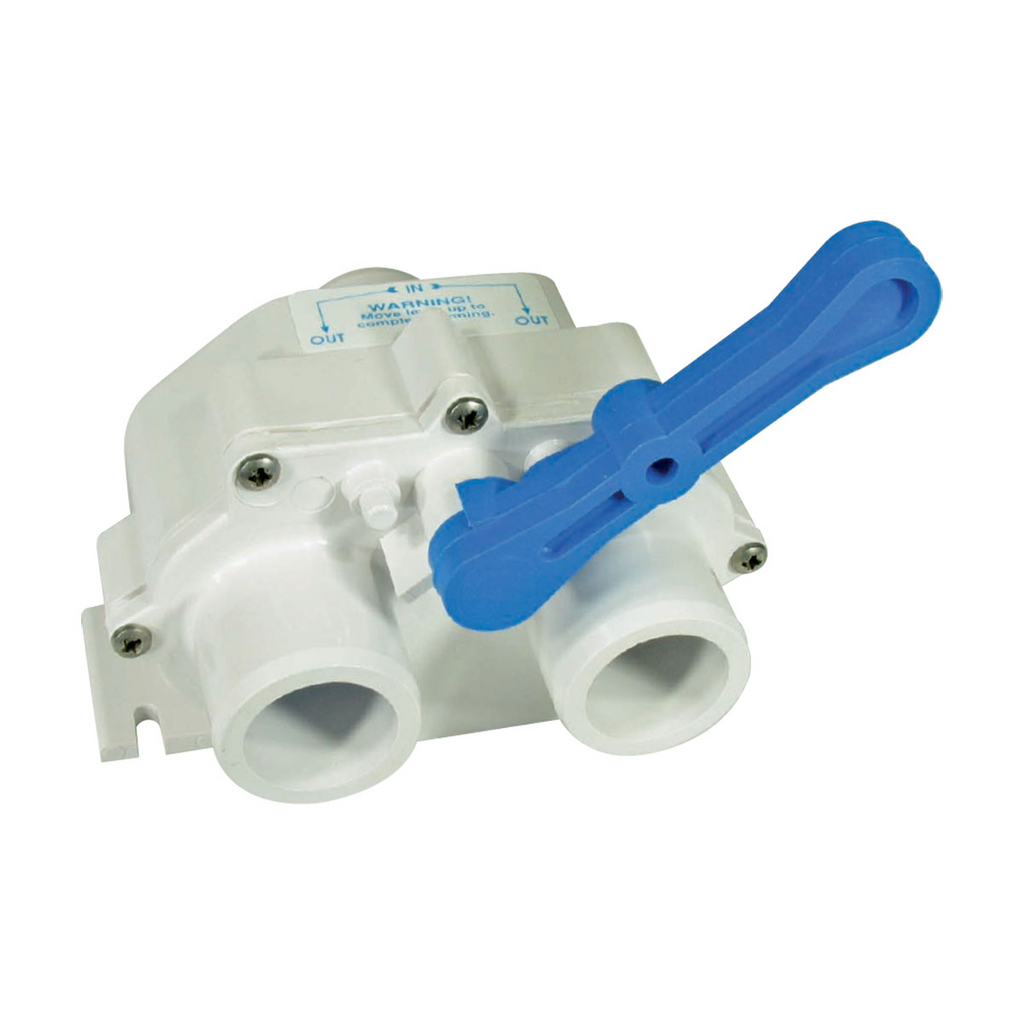

Provides controlled diversion of 2 x 38mm lines into one or vice versa. Typical uses include connection of one bilge pump to two separate bilge areas or installation in a toilet system to control discharge to holding tank, or deck waste pump out, or discharge overboard (if permitted). Manufactured from ABS plastic to retain odours. Stainless steel fastenings used throughout. Locking tab enables the valve to be locked in one line open position. Valve configuration has common port always open with one of the other ports selectably open or both open. It is only possible to close one port at any one time.
BLA CodeHose Size mmWidth mmDepth mmHeight Handle Up mmMount Screws mm
BLA Code
Hose Size mm
Width mm
Depth mm
Height Handle Up mm
Mount Screws mm
131138381391101575 r/h
