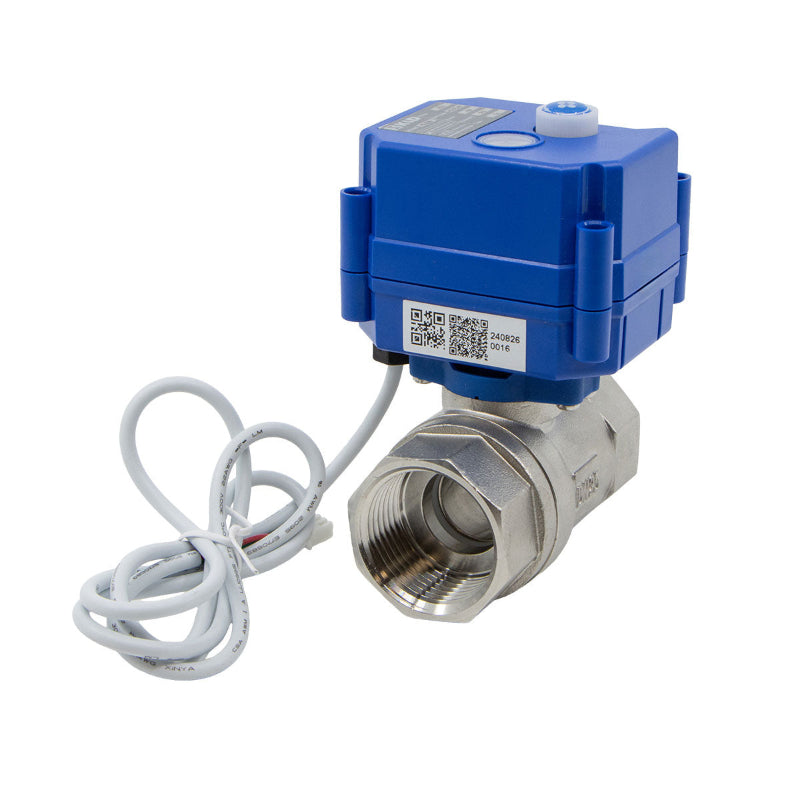

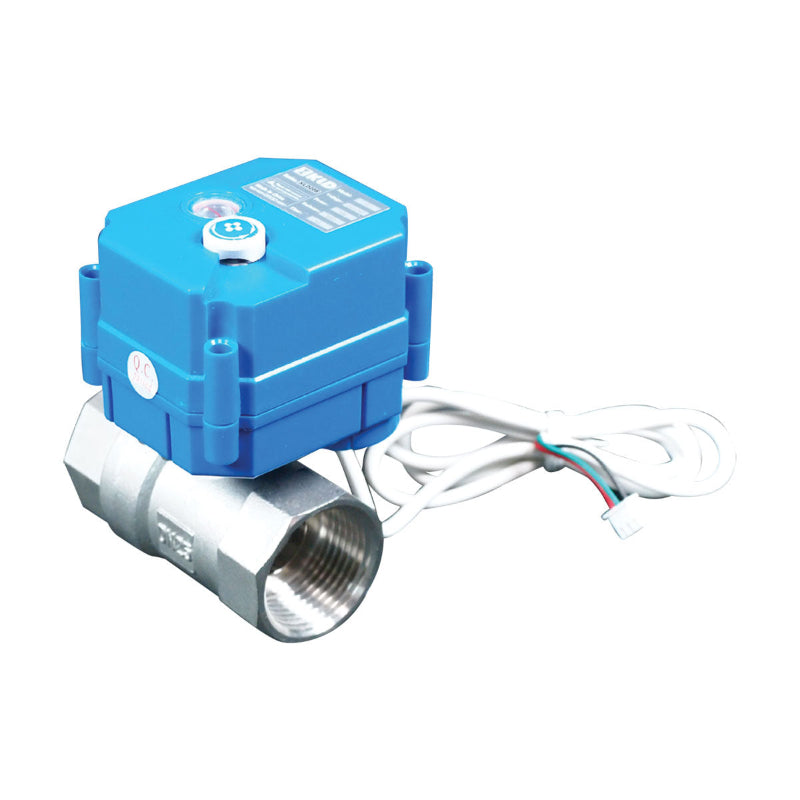

Electrical Actuated Ball Valves

A range of convenient electric actuators combined with 304 grade stainless steel two way ball valves to provide remote operation allowing the ball valve to be opened or closed electronically from a single position.

The electric actuators are operated via a standard three position electrical switch (not supplied). For added safety a simple yet efficient built in manual override function is standard for use in the event of a power failure (valve accessibility required). An easy to view ball position window is recessed into the top housing ensuring total valve closure.

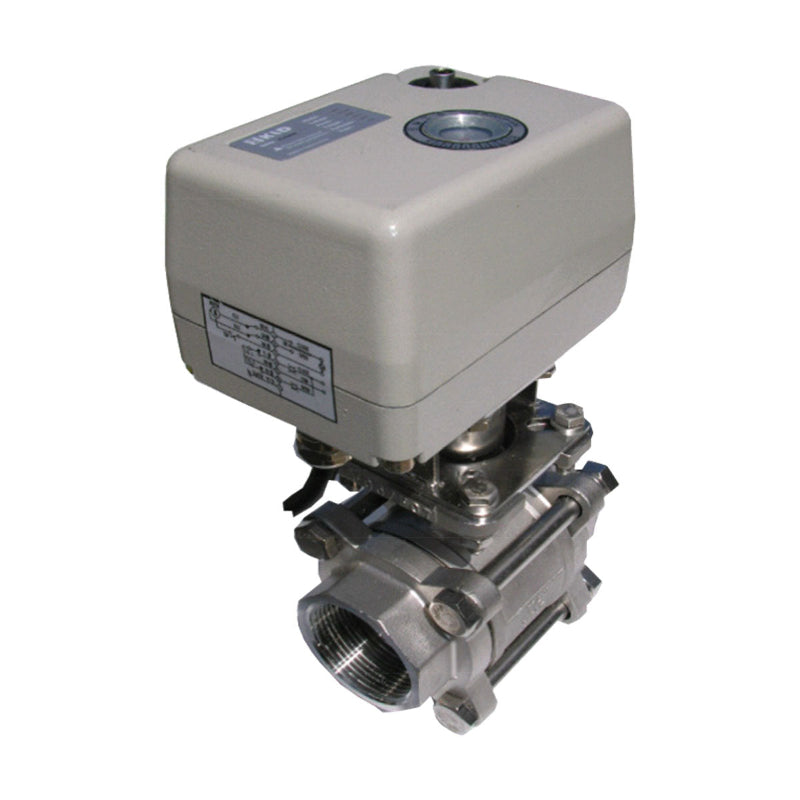

For 3/4" and 1" valves the actuator mechanisms are housed in a tough heavy duty polyamide shell, providing excellent corrosion resistance and protection against accidental knocks. The 1 1/2" actuator mechanism is enclosed in a heavy duty die cast aluminium housing providing excellent protection.

All actuators are fully sealed to IP67 Specifications to prevent water ingress. With a quick open and closing time of less than 12 seconds per direction these actuators have been manufactured with a long service life in mind, typically 70,000 to 100,000 life cycles.
