Description
FEATURES
• Conforms to most common bow roller designs and self-launches.
• Rollbar ensures anchor rolls itself to adopt the correct setting position.
• Twin slots on the fixed shank enable use in all seabeds. If using the rockslot, (long slot) the shackle can slide forward and lift the anchor out forward if it becomes fouled.
• High tensile steel shank made from 800mpa steel - 25% stronger than any other anchor.
• Sharp spearhead assists anchor to pierce the toughest seafloors, ensuring greater penetration.
• Lateral flaps enable the anchor to set immediately.
• Reinforced double-skinned laminated nose, strengthens the forward section where most loading is concentrated.
• Certified to Lloyd’s Register as a Super High Holding Power (SHHP) anchor.
• Available in galvanised or highly polished stainless steel.
Buy-In Only (Enquire for pricing):
Stainless Steel
124324 Anchor Manson-Supreme 7kg (15LB) S/S
124326 Anchor Manson-Supreme 11kg (25LB) S/S
124328 Anchor Manson-Supreme 16kg (35LB) S/S
124334 Anchor Manson-Supreme 37kg (80LB) S/S
124336 Anchor Manson-Supreme 45kg (100LB) S/S
124338 Anchor Manson-Supreme 57kg (125LB) S/S
124340 Anchor Manson-Supreme 68kg (150LB) S/S
124342 Anchor Manson-Supreme 80kg (175LB) S/S
124344 Anchor Manson-Supreme 102kg (225LB) S/S)
124346 Anchor Manson-Supreme 125kg (275LB) S/S)
SPECIFICATIONS

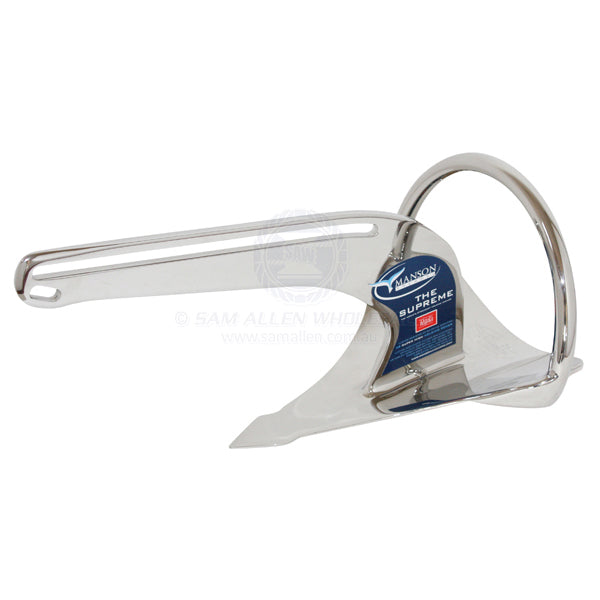

Part No. 124330
Length 685mm (A)
Weight 21kg (45LB)
Type Stainless Steel
Fluke Length Inner (B) 295mm
Fluke Length Outer (C) 520mm
Depth (D) 460mm
Fluke Width (E) 410mm
Note Some sizes of the stainless steel versions are buy-in only (lead time approx. 16 weeks).
Also available in sizes 225lb to 375lb - POA
