FEATURES

• Traditional anchor with proven performance in the widest variety of weather and seabeds.
• Hinged shank improves the scope of movement of chain.
• Weighted tip ensures the anchor digs in on the first attempt and resets if dislodged in strong conditions.
• Wings ensure the anchor self corrects.
• Certified to Lloyd’s Register as a High Holding Power (HHP) anchor.

Buy-In Only (Enquire for pricing):
Galvanised
124024 Anchor Manson-Plough 55kg (120LB) Galvanised
124026 Anchor Manson-Plough 68kg (150LB) Galvanised
124028 Anchor Manson-Plough 82kg (180LB) Galvanised
124030 Anchor Manson-Plough 91kg (200LB) Galvanised
124031 Anchor Manson-Plough 100kg (220LB) Galvanised
124032 Anchor Manson-Plough 114kg (250LB) Galvanised
124034 Anchor Manson-Plough 135kg (300LB) Galvanised

Stainless Steel
124242 Anchor Manson-Plough 7kg (15LB) S/S
124244 Anchor Manson-Plough 9kg (20LB) S/S
124246 Anchor Manson-Plough 12kg (25LB) S/S
124248 Anchor Manson-Plough 14kg (30LB) S/S
124250 Anchor Manson-Plough 16kg (35LB) S/S
124252 Anchor Manson-Plough 18kg (40LB) S/S
124254 Anchor Manson-Plough 21kg (45LB) S/S
124256 Anchor Manson-Plough 24kg (50LB) S/S
124258 Anchor Manson-Plough 27kg (60LB) S/S
124260 Anchor Manson-Plough 36kg (80LB) S/S
124262 Anchor Manson-Plough 45kg (100LB) S/S
124264 Anchor Manson-Plough 55kg (120LB) S/S
124266 Anchor Manson-Plough 68kg (150LB) S/S
124268 Anchor Manson-Plough 82kg (180LB) S/S
124270 Anchor Manson-Plough 91kg (200LB) S/S
124272 Anchor Manson-Plough 114kg (250LB) S/S
124274 Anchor Manson-Plough 135kg (300LB) S/S

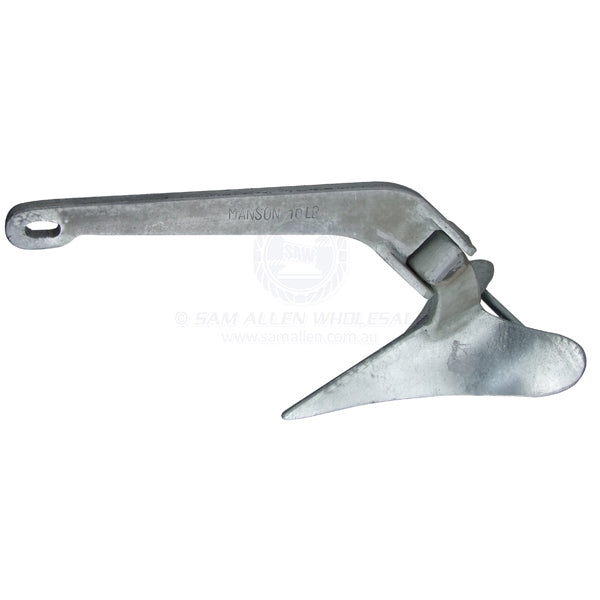

  SPECIFICATIONS

Part No. 124006
Length 570mm (A)
Width 280mm (B)
Weight 12kg (25LB)
Type Galvanised
Fluke Length Outer (C) 430mm
Fluke Height (D) 90mm
Fluke Length Inner (E) 240mm
Depth (F) 290mm
Note Stainless steel versions and larger galvanised anchors are buy-in only (lead time approx. 16 weeks).
Also available in sizes 250lb and 300lb - POA.
