Description

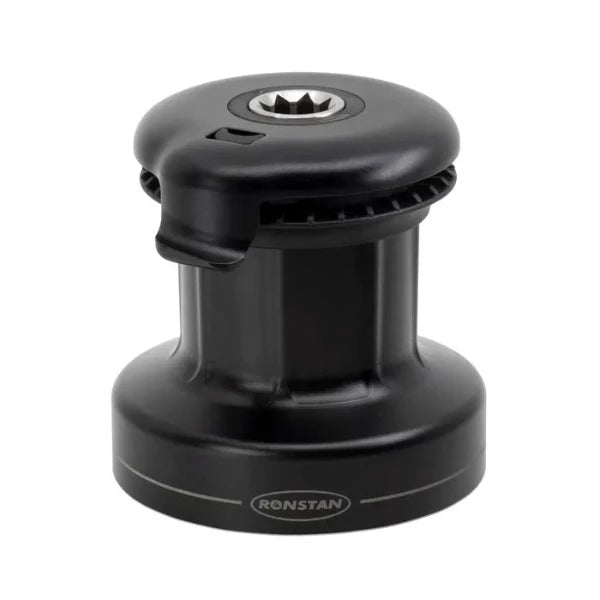

20ST Orbit Winch™, 1-Speed
Lightweight aluminium winch with self-tailer and Power Ribs™ ensures a controlled grip on the line at all times.
FEATURES
Sprung self-tailing jaws to accept 6 - 10mm line.
Proven Andersen winch gearing configuration.

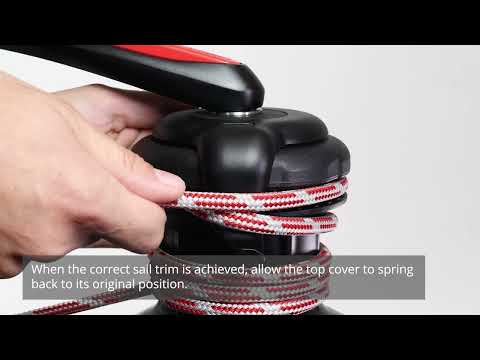

Power Rib™ ensures a controlled grip on the line at all times, whether trimming or easing. Minimal rope wear compared to more abrasive drum surface finishes.
No tools required for configuration and servicing.
Machined aluminium drum – stronger and lighter than traditional cast aluminium drums.
Aluminium centre stem, lighter weight compared to bronze stems.
Low line entry due to gearing configuration geometry.
SPECIFICATIONS
| Weight (kg) | 1.7 |
|---|---|
| Gear ratio 1st speed | 2.7:1 |
| Gear ratio 2nd speed | - |
| Power ratio 1st speed | 18.3:1 |
