Description

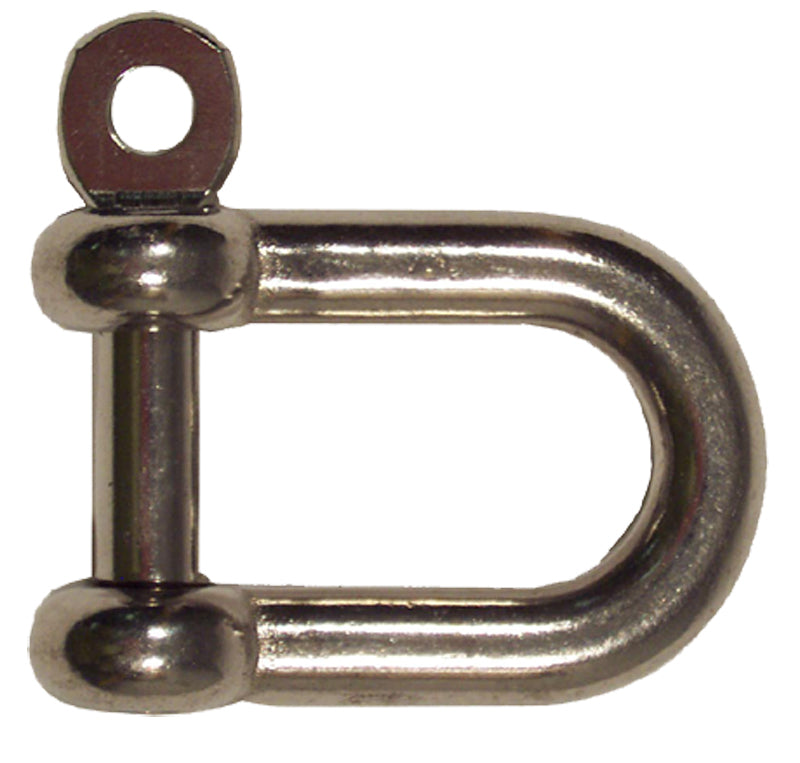

316 Grade S/S captive pin “D” shackles, When unscrewed the pin wont fall out.Available bulk only.
| Code | Dia. (mm) | TDL | A (mm) | B (mm) | D (mm) | L1 (mm) | L2 (mm) |
| SS360LK-06 | 6mm | 500kg | 5.2mm | 11.7mm | 11.8mm | 21mm | 35mm |
| SS360LK-08 | 8mm | 1120kg | 7.2mm | 14.8mm | 14.5mm | 28mm | 42mm |
| SS360LK-10 | 10mm | 1600kg | 8.9mm | 19.7mm | 19.3mm | 35mm | 58mm |
