Description

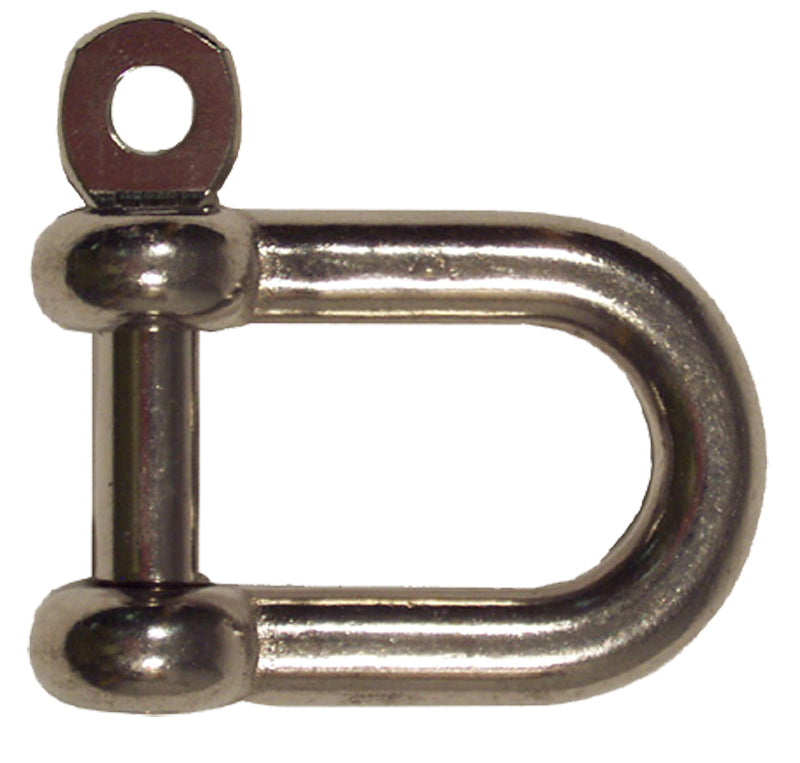

316 Grade S/S “D” shackles. Available bulk or packed for easy display.
| Code | Dia. (mm) | TDL | A (mm) | B (mm) | D (mm) | L1 (mm) | L2 (mm) |
| SS360-05 | 5mm | 400kg | 4.8mm | 11.3mm | 9.7mm | 18mm | 30mm |
| SS360-06 | 6mm | 550kg | 5.8mm | 12mm | 11.7mm | 21mm | 36mm |
| SS360-07 | 7mm | 720kg | 6.8mm | 14.5mm | 13.5mm | 24.8mm | 41.3mm |
| SS360-08 | 8mm | 1120kg | 7.8mm | 17.5mm | 15.6mm | 28.7mm | 48.2mm |
| SS360-10 | 10mm | 1600kg | 9.7mm | 21.5mm | 20mm | 35.7mm | 60mm |
| SS360-12 | 12mm | 2400kg | 11.8mm | 27mm | 23.7mm | 42.7mm | 70mm |
| SS360-16 | 16mm | 3600kg | 16mm | 32mm | 31mm | 56mm | 95mm |
| SS360-19 | 19mm | 4400kg | 19mm | 38mm | 38mm | 66mm | 110mm |
