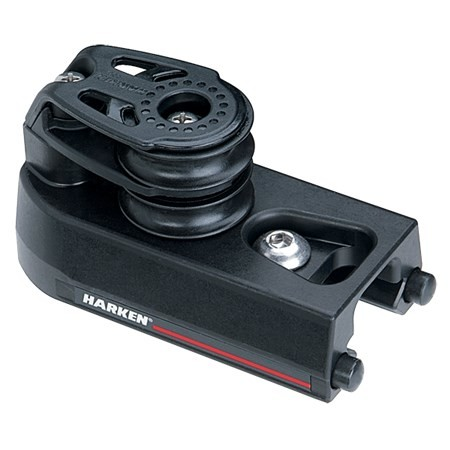

3169-32mm End Control - Double Sheave, Set of 2

Sheave Ø(mm)40 mm
Sheave Ø(in)1 9/16 in
Length (mm)122 mm
Length (in)4 13/16 in
Width (in)2 1/4 in
Width (mm)57 mm
Height above track (mm)51 mm
Height above track (in)2 in
Weight for pair (g)887 g
Weight for pair (oz)31 oz
Maximum line Ø(mm)10 mm
Maximum line Ø(in) 3/8 in
Maximum working load (kg)408 kg
Maximum working load (lb)900 lb
Breaking load (lb)2300 lb
Breaking load (kg)1040 kg
Purchase 3:1 / 4:1
Fasteners (mm)10 RH mm
FootnoteFasteners included
