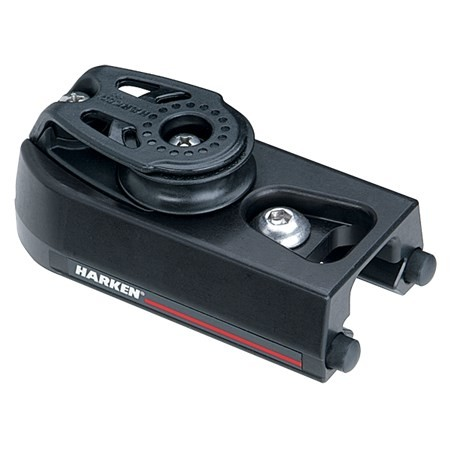

3168-32mm End Control - Set of 2

Sheave Ø(mm)40 mm
Sheave Ø(in)1 9/16 in
Length (mm)122 mm
Length (in)4 13/16 in
Width (in)2 1/4 in
Width (mm)57 mm
Height above track (mm)36 mm
Height above track (in)1 7/16 in
Weight for pair (g)767 g
Weight for pair (oz)27 oz
Maximum line Ø(mm)10 mm
Maximum line Ø(in) 3/8 in
Maximum working load (kg)204 kg
Maximum working load (lb)450 lb
Breaking load (lb)1600 lb
Breaking load (kg)725 kg
Purchase 1:1 / 2:1
Fasteners (mm)10 RH mm
FootnoteFasteners included
