Description
SHIPPED FROM OUR SUPPLIER DIRECT TO YOU.
• Cast 316G polished stainless steel.
• Slim line, easy grip handles in modern and contemporary design.
• No Locking mechanism suitable for internal doors.
• Flat strike plate.
• Lock + Striker Plate mount holes 2 x 4.5mm c/s.
• Face Plate mount holes 4 x 4.5mm c/s.

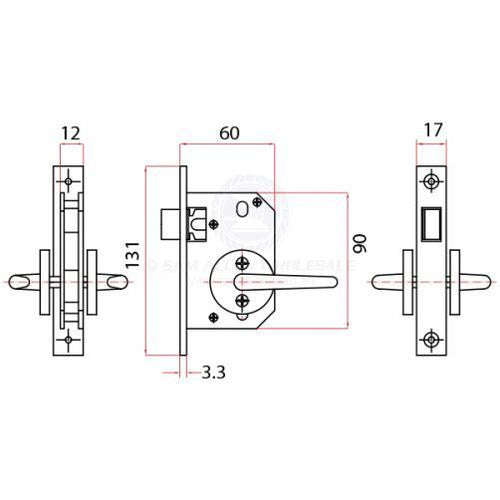

| Lock (D x W x H) | 17mm x 60mm x 131mm |
| Lock Cut Out (W x D x H) | 12mm x 57mm x 90mm |
| Door Thickness | 25mm - 35mm |
| Type | Mortise Lock |
| Handle (L) | 65.7mm |
| Face Plate (W x H) | 25mm x 164mm |
