Description

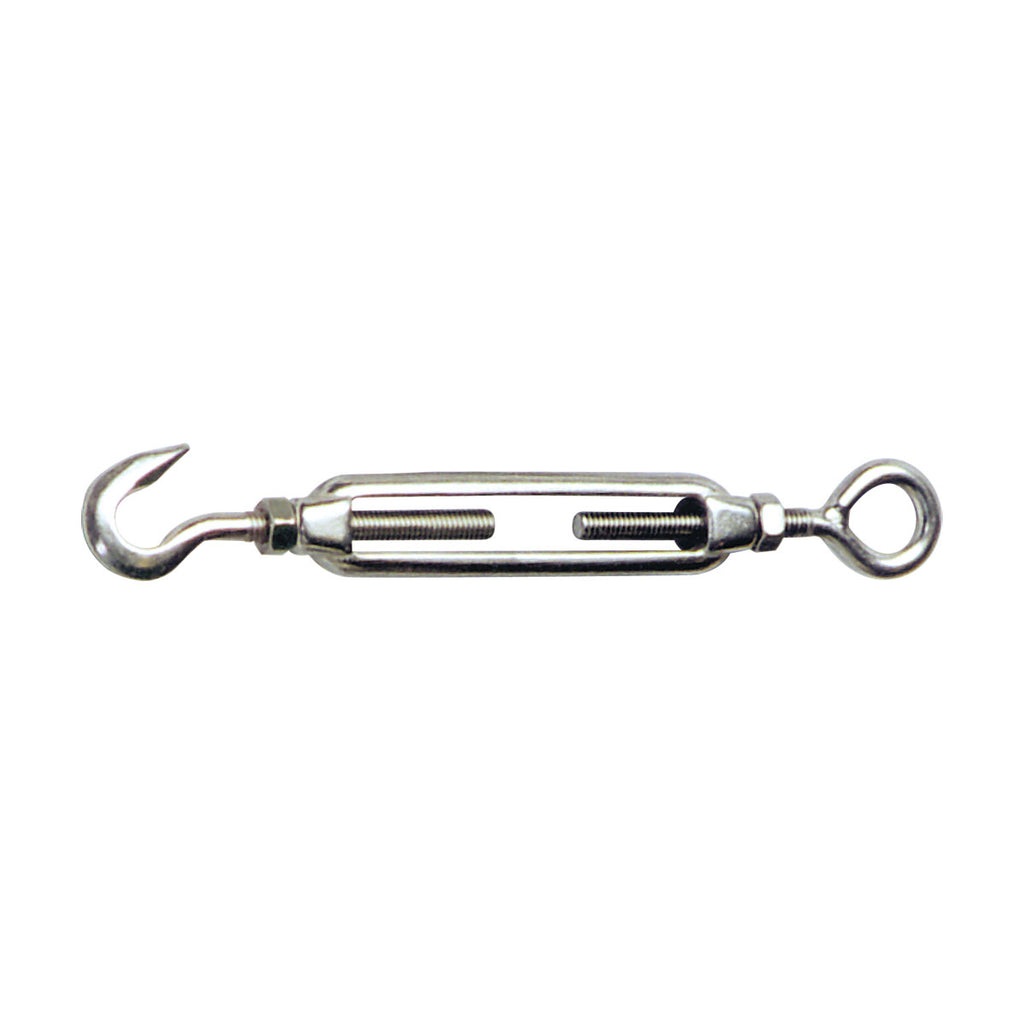

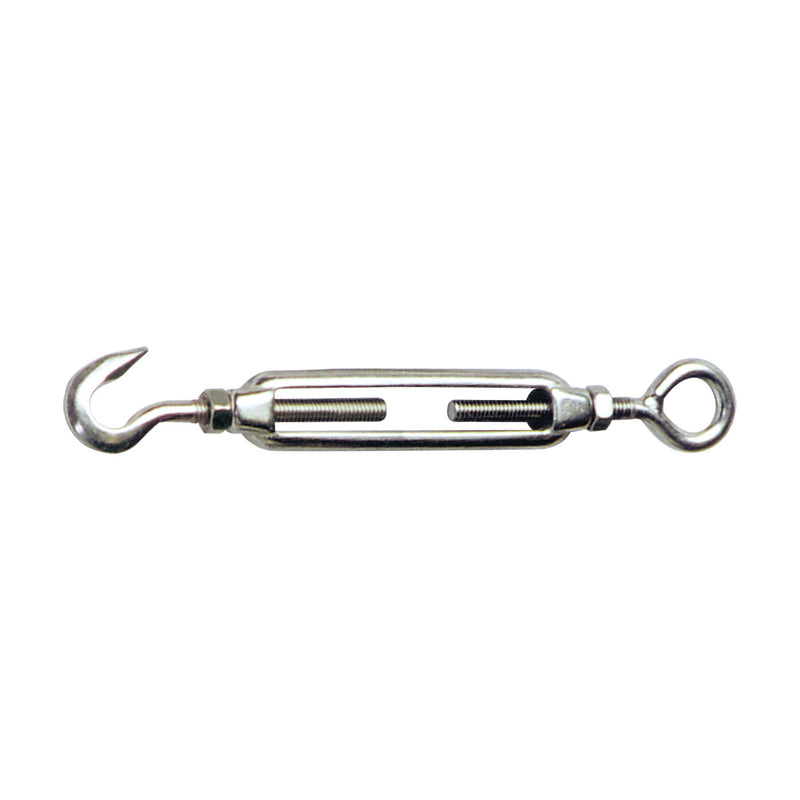

Hook and eye, 316 grade cast stainless steel open body. Forged stainless steel hook one end, rolled and welded stainless steel eye the other end.
| BLA CODE | THREAD | A MM | B MM | C MM | BREAKING LOAD KG |
|---|
| 163082 | M4 | 100-145 | 8 | 8 | 100 |
| 163084 | M5 | 120-170 | 10 | 9 | 130 |
| 163086 | M6 | 150-220 | 12 | 10 | 350 |
| 163088 | M8 | 200-290 | 13 | 10 | 650 |
| 163090 | M10 | 240-360 | 16 | 12 | 800 |
| 163092 | M12 | 305-475 | 19 | 16 | 1400 |
